5. Operation Panel

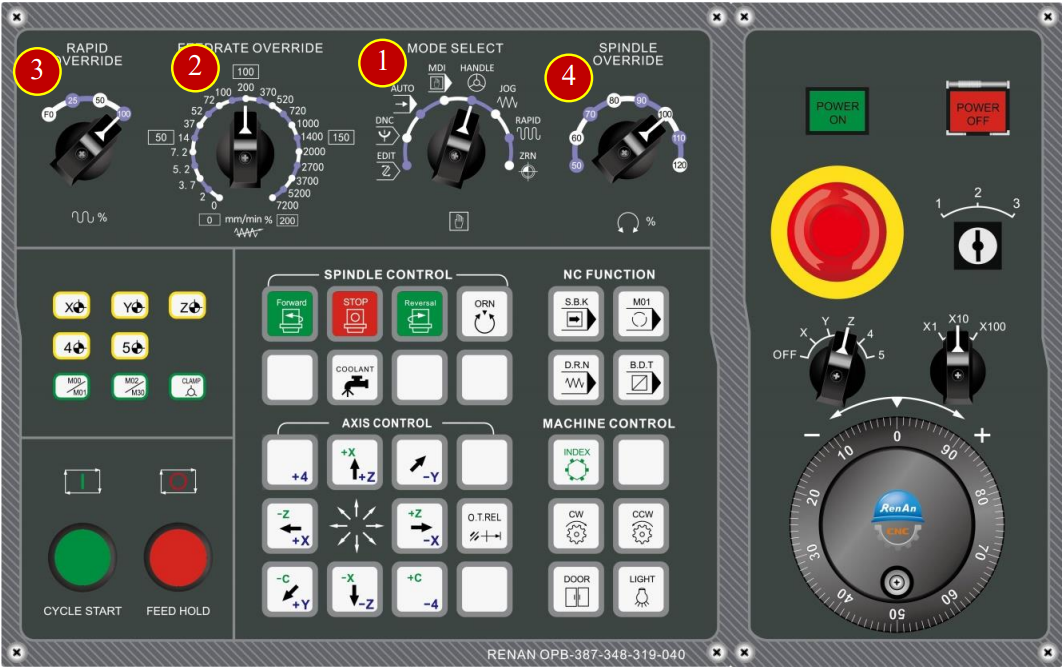

5.1 Controller Panel Introduction

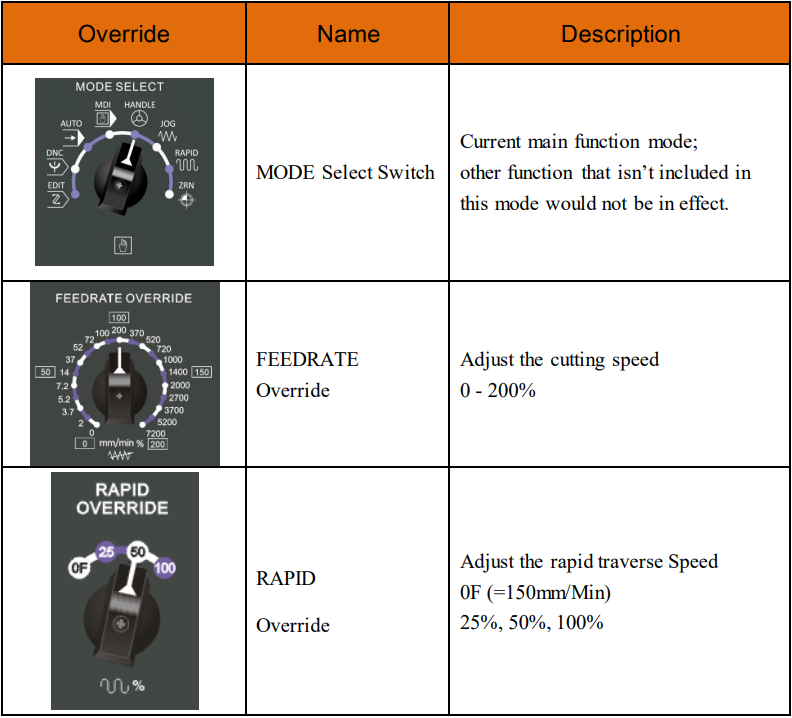

(1) Mode Select
(2) Feedrate Override
(3) Rapid Override
(4) Spindle Override
5.2 Machine Operation Mode Select Buttons

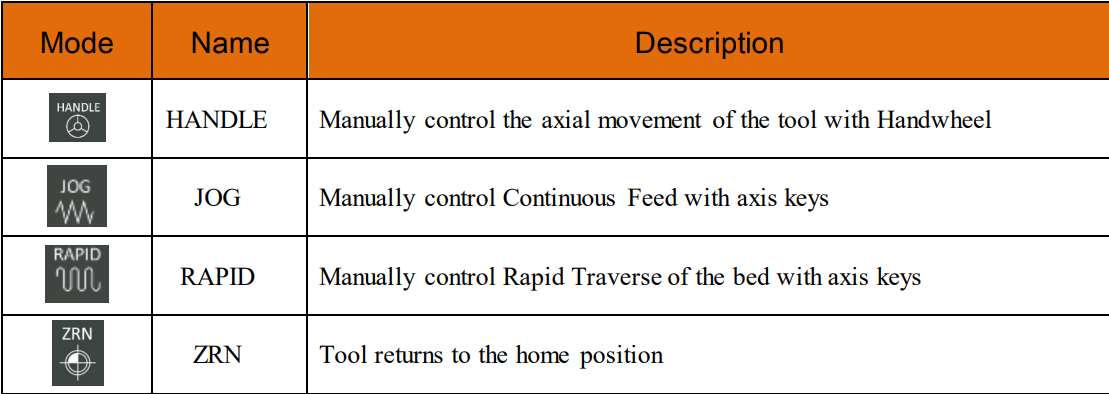

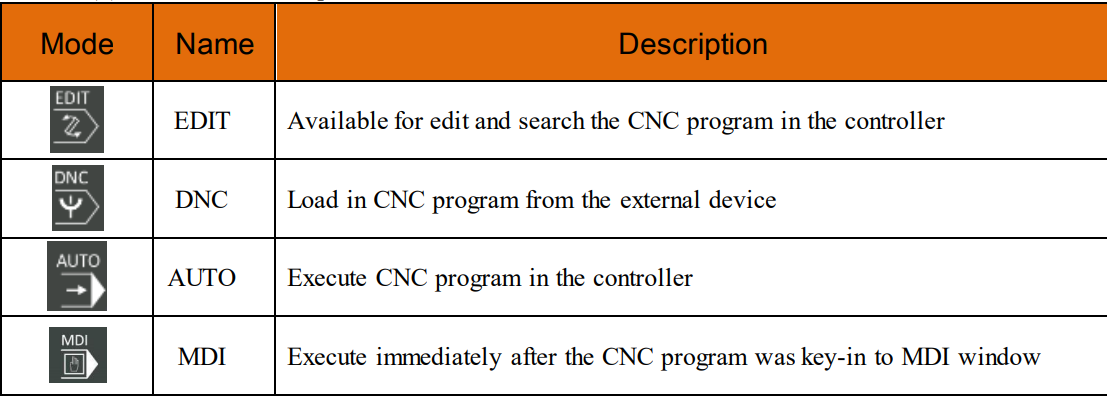

[Operation Mode Select]: (1)Auto Mode (2)Manual Mode
(1) Auto Mode Description:
(2) Manual Mode Description:
5.3 Select Tool Manually
Manually select tool number, E.g.: No.7
(1) Select the [JOG] operating mode (or position of other manual mode
(2) Press【INDEX】, rotate clockwise to position No.7
5.4 Handwheel HANDLE Feed Operation
When in HANDLE mode, move the tools manually via Handwheel
5.4.1 HANDLE Introduction
(1) Continuous Feed:
Continuously rotate the handwheel with the Handwheel holder
(2) Detailed Adjustment:
Grabbing the side of handwheel scale ring and slowly rotate it

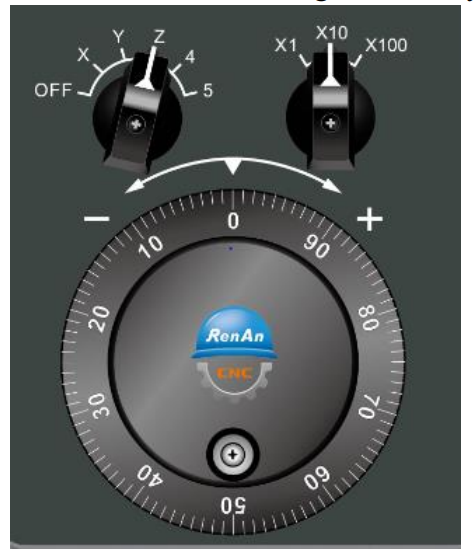

5.4.2 [Axial Select] & [Magnification Select] description

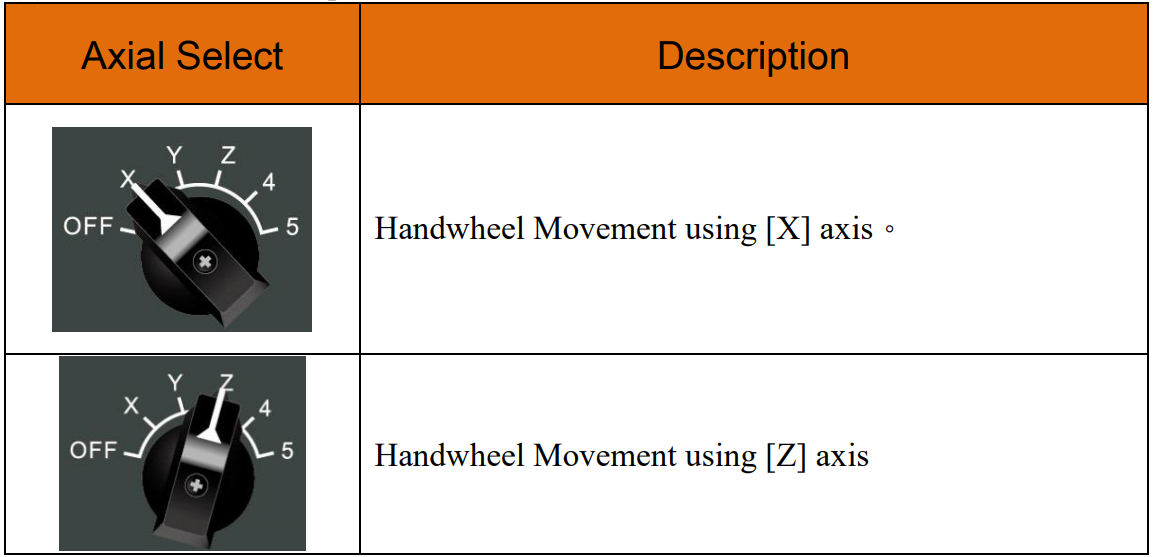

(1) [Axial Select] description:

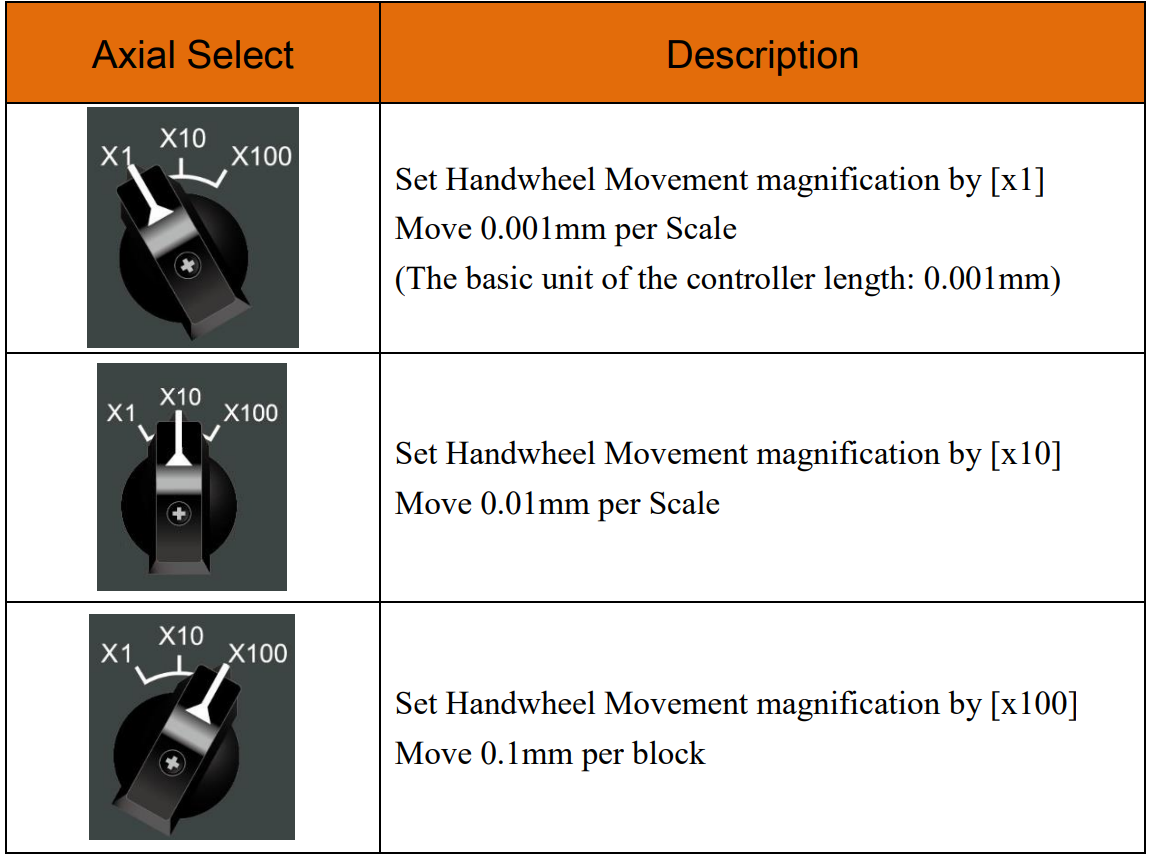

(2) [Magnification Select] description:
5.5 Common Buttons Description

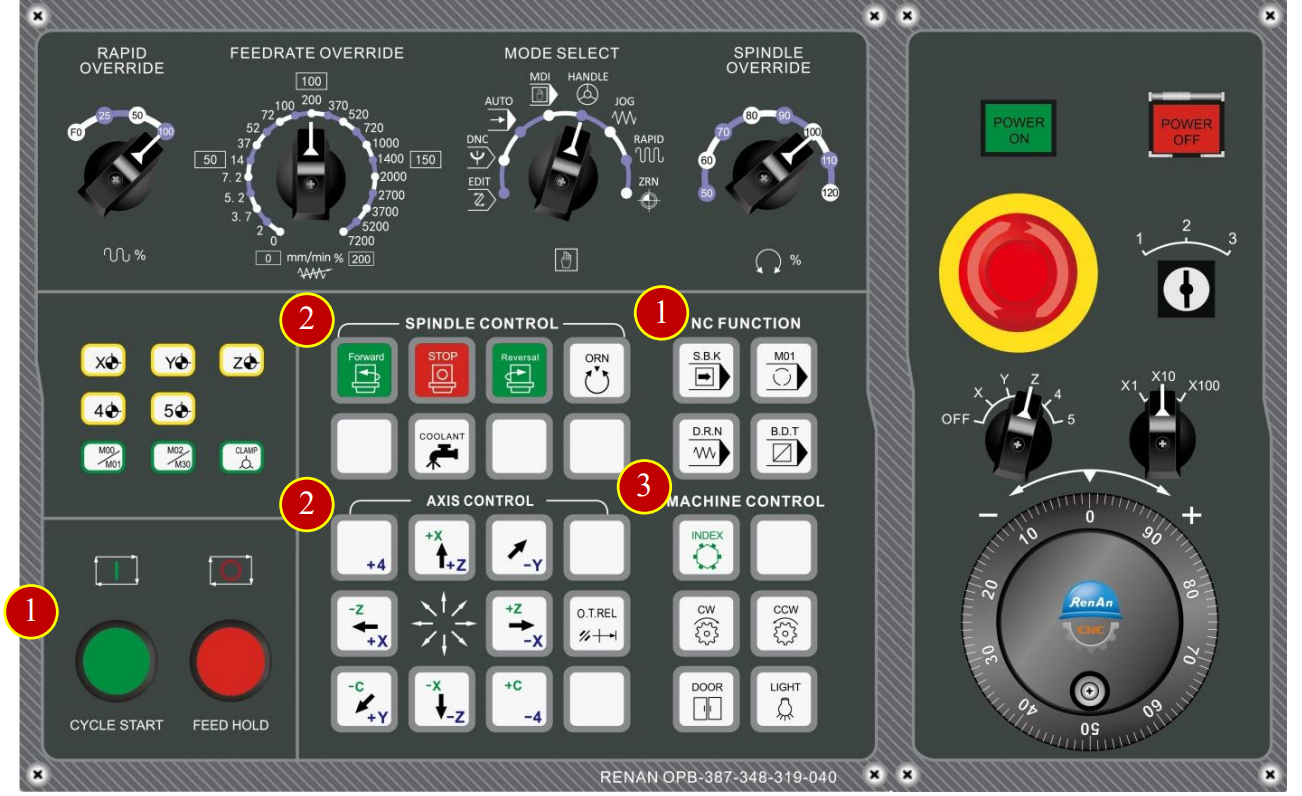

5.5.1 Classification
(1) Auto
(2) Manual (Axial movement, spindle control)
(3) Other auxiliary buttons
5.5.2 Buttons Description

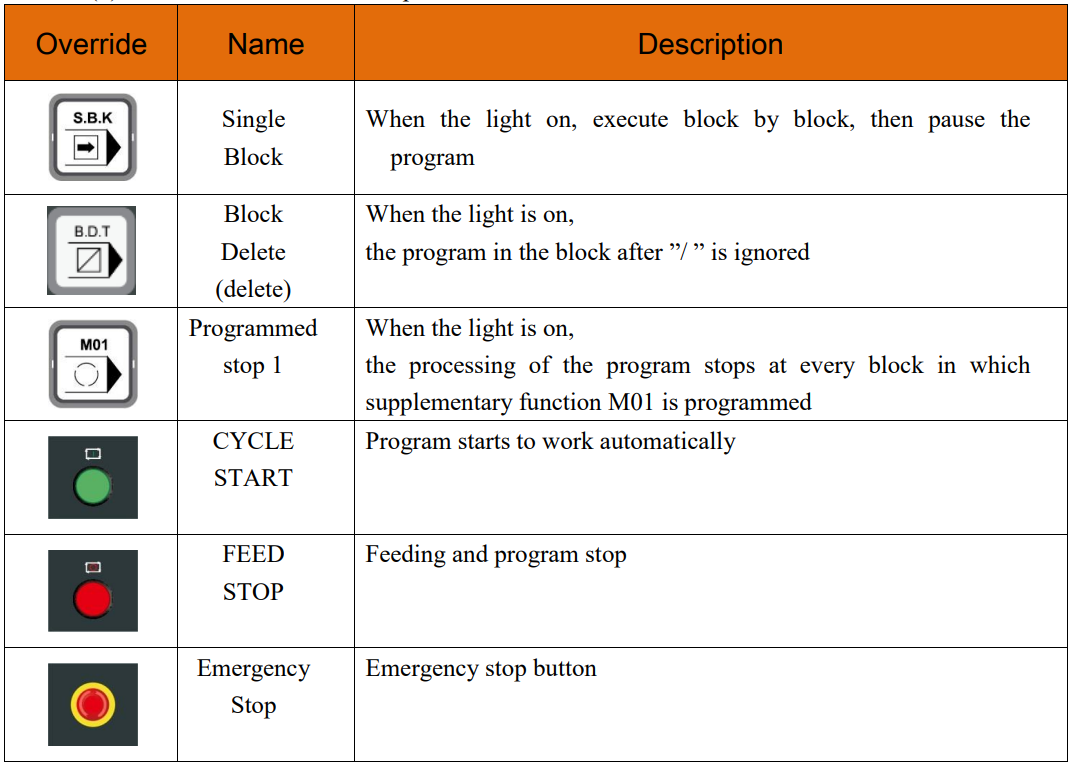

(1) Auto execute buttons description:

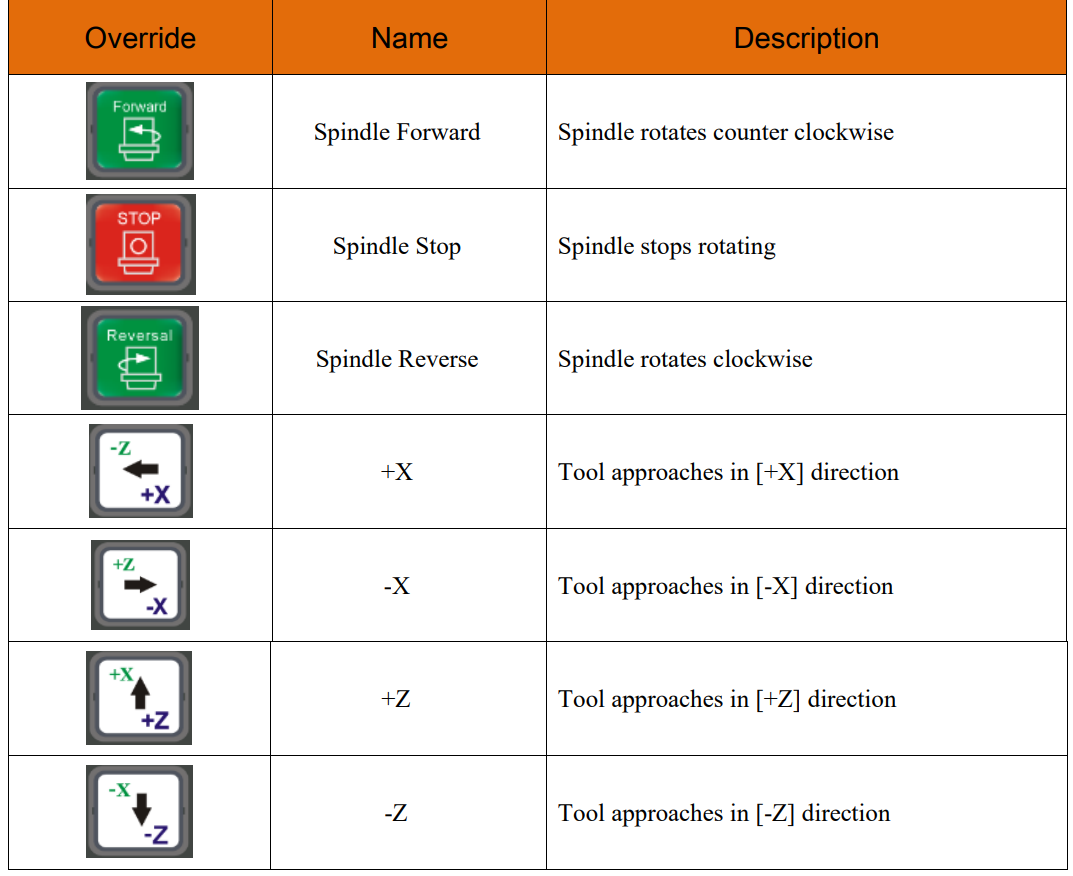

(2) Manual Control Buttons’ description:

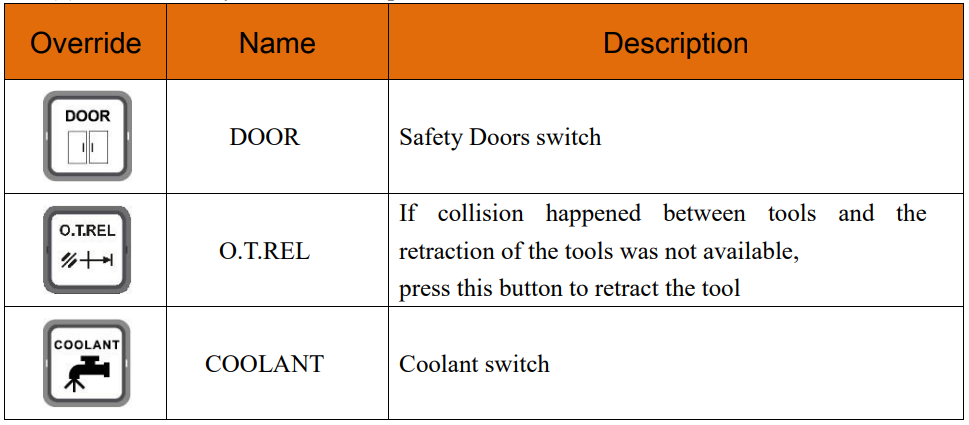

(3) Other auxiliary buttons’ description:
