6. Tool & Material
6.1 Material Settings
Set material before cutting simulation
6.1.1 Button Description:
6.1.2 Set Material

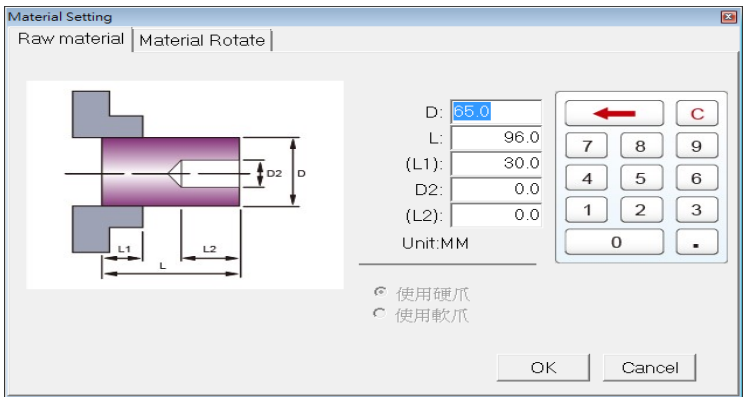

(1) Press【Application Tool Bar】>【Material settings】to set up the size of material
(2) Key in the material diameter and length
e.g. (D)= 65, (L)=96 (L1)=30 , Hole(D2)=0 (L2)=0
(3) Press【OK】to finish
6.2 Turret Install
To install the tool turret on the machine before simulation

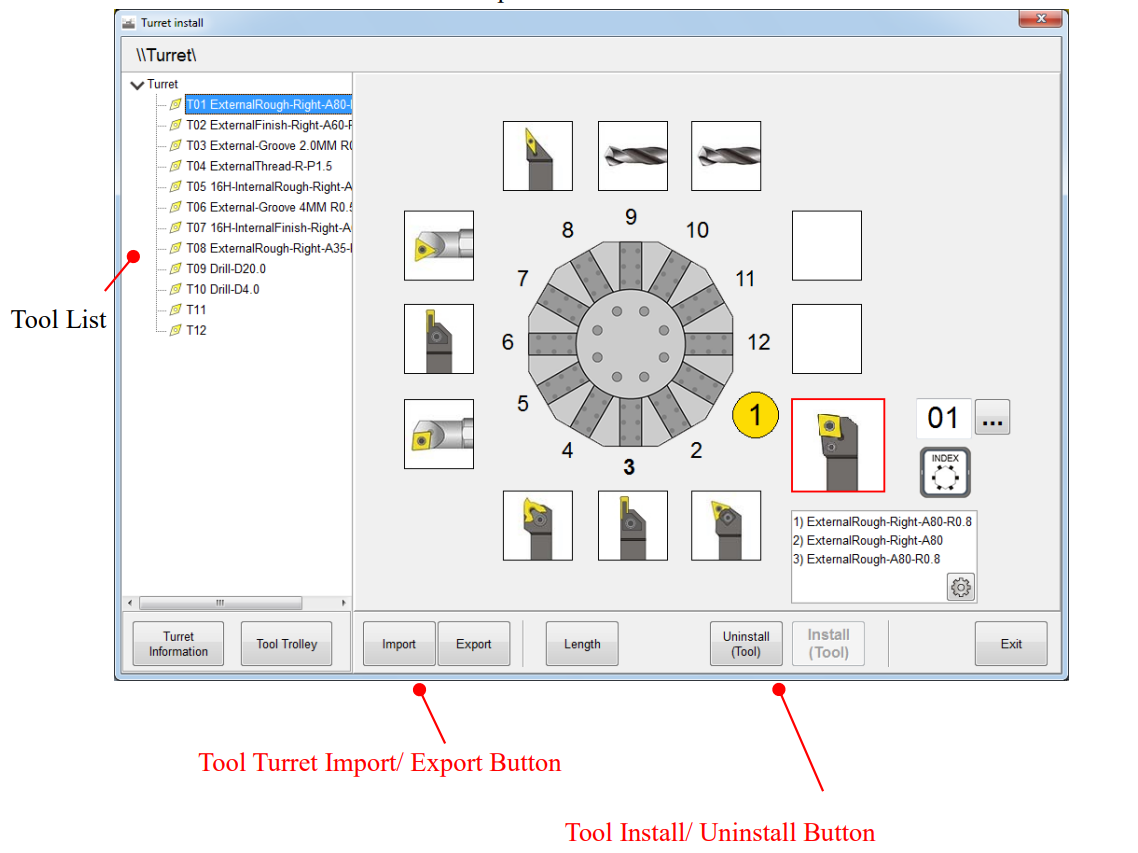

6.2.1 Tool Turret Install Function Description
6.2.2 Tool Install
e.g. Install “Rough(R)-A80-R0.8” on the No.11

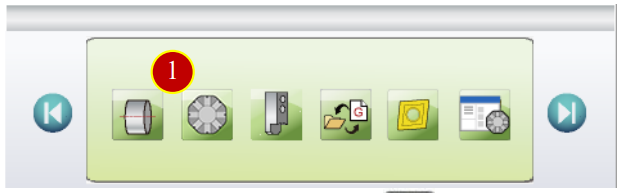

(1) Press【Application Tool bar】>【Turret】

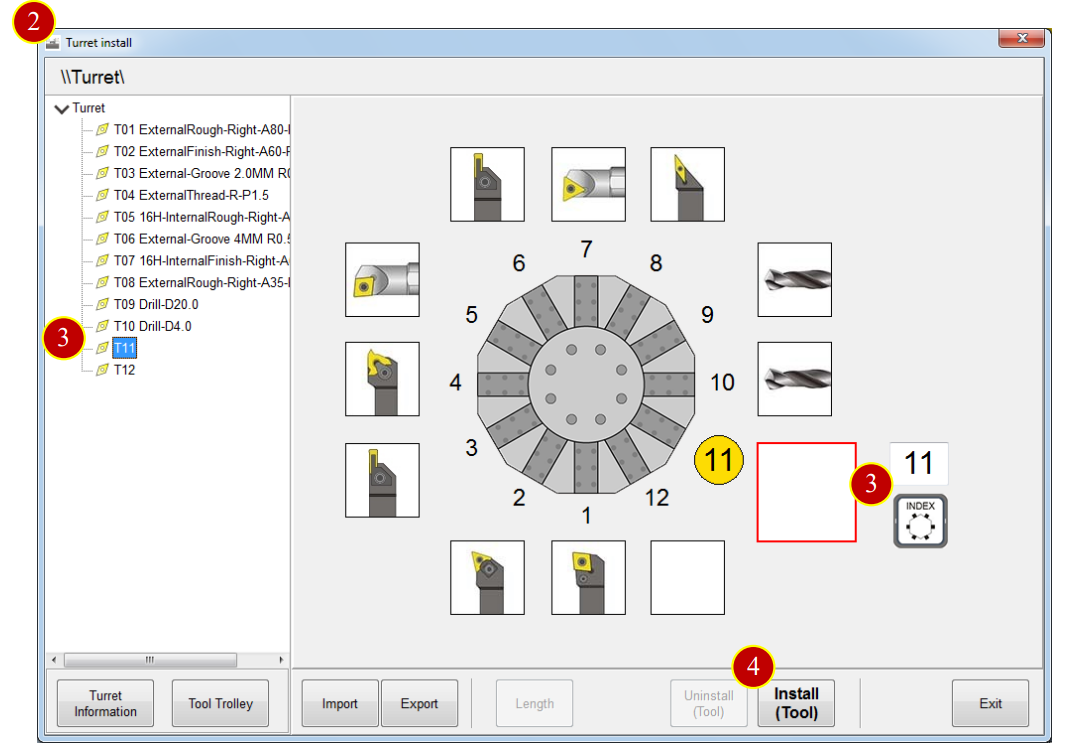

(2) Open Turret Install window
(3) Select the Empty tool No.11, and Press [T11] in the Tool List, then Rotate to preparatory tool position

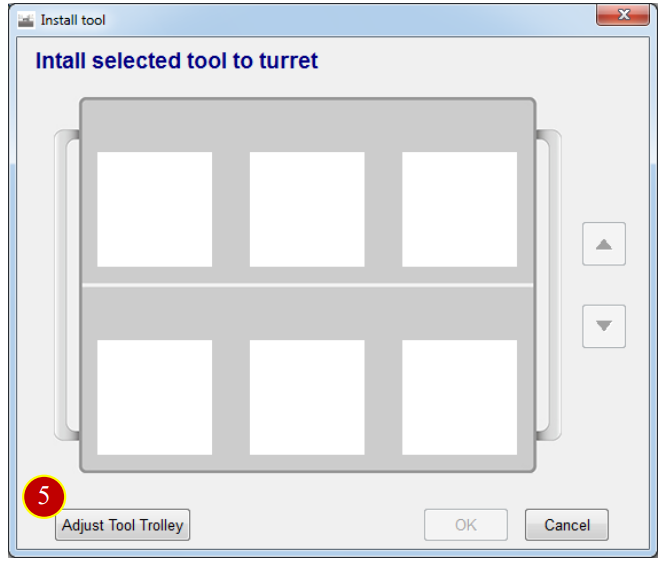

(4) Press【Install (Tool)】 , open the Tool Install window
(5) Press【Adjust Tool Trolley】, Open Tool Trolley Adiust window
(6) Press【 】, enter Select Tool window

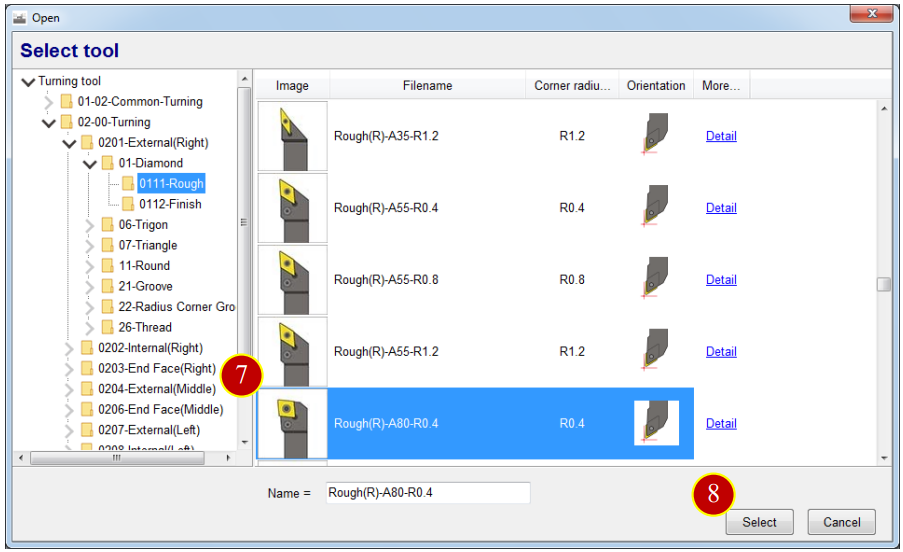

(7) Select the tool in Tools data
e.g. [01-02-Turning] > [Rough(R)-A80-R0.8]
(8) Press【Select】 , bring tool back to Tool trolley

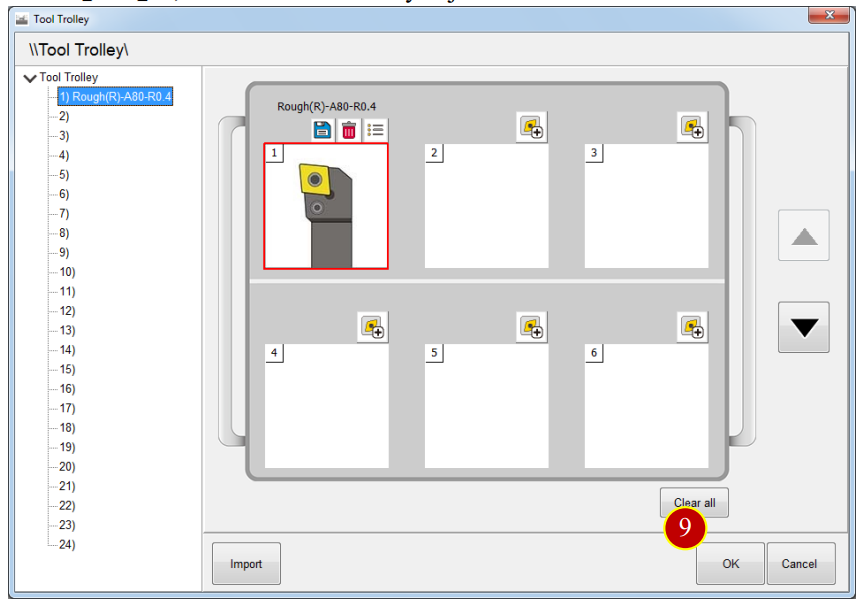

(9) Press【OK】 , close the Tool Trolley adjust window

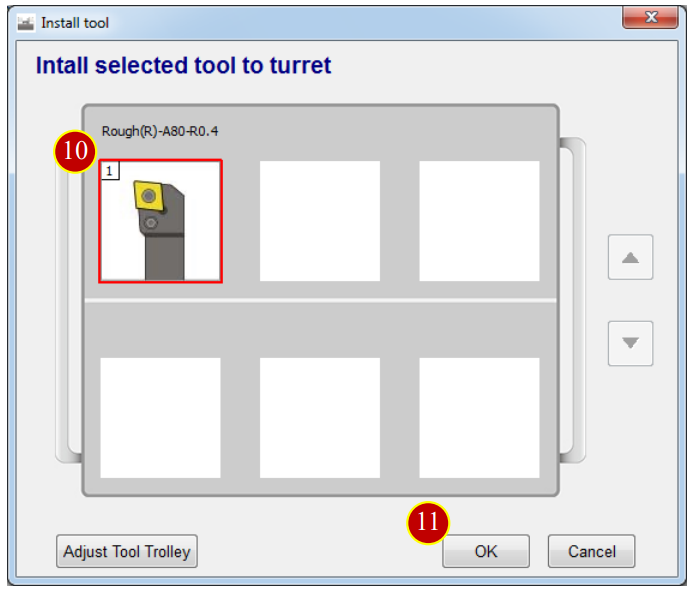

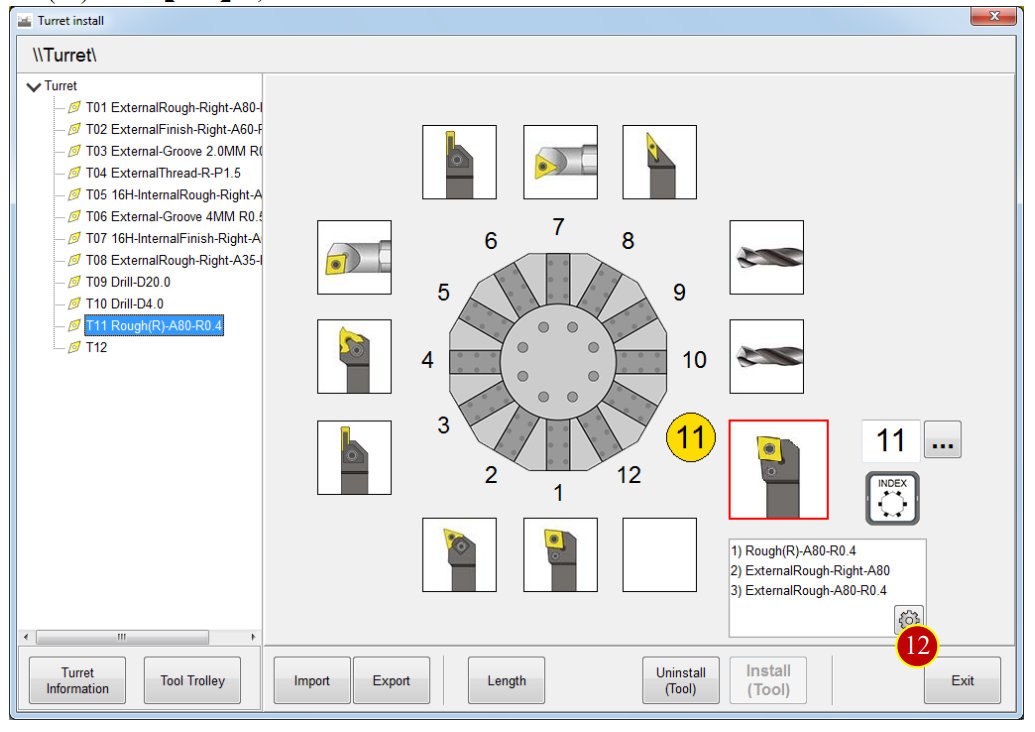

(10) Select No.1 [Rough(R)-A80-R0.4] in the Trolley
(11) Press【OK】 , the tool will be installed to Turret
6.3 Tool Manager
To set up the tool data includes Tool tag, Holder parameter, Tool parameter, Process data,
Cut condition as the basic data setting before simulation
6.3.1 Enter the Tool Manager and Setting :

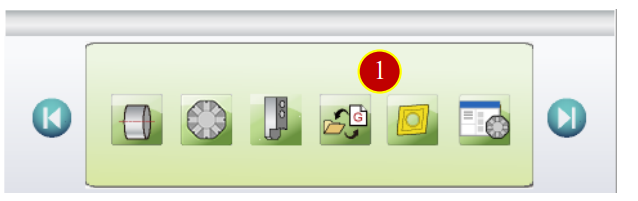

(1) Press【Application Tool Bar】>【Tool Manager】

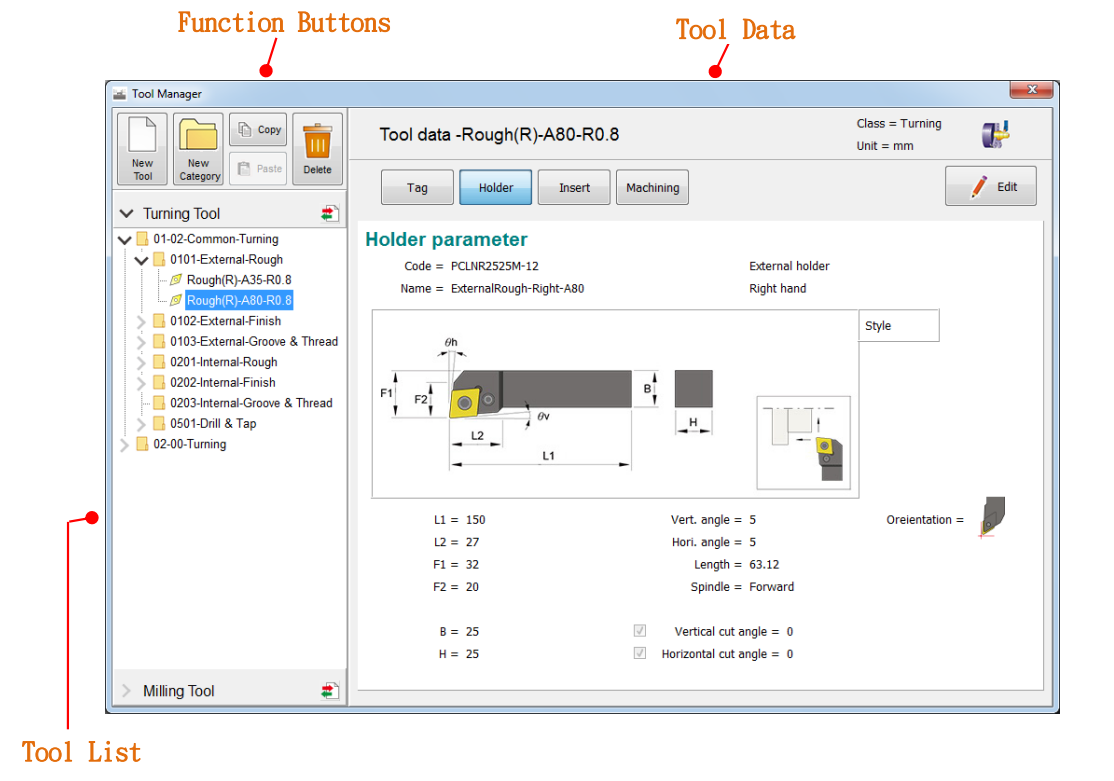

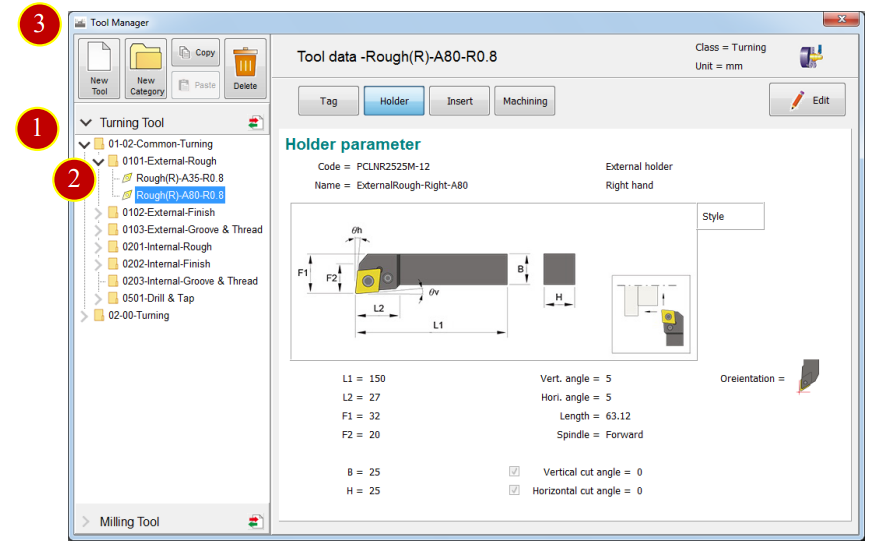

6.3.2 [Tool Manager] Button Description:
6.3.3 New Tool
e.g. Add tool “ExternalRough(R)-A80-R0.8 ”
(1) Select tool category in tool list
e.g. [01-02-Common-Turning] > [0101-External-Rough]
(2) Press similar tool number
e.g. Rough(R)-A80-R0.8
(3) Press【New Tool】to enter New tool window

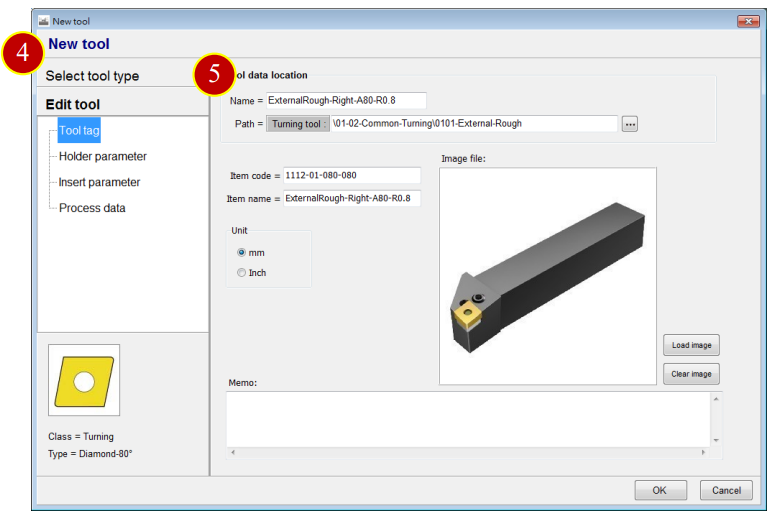

(4) Press【Select Tool Type】>【Turning】>【Diamond-80】to enter Edit tool page
(5) Key in Tool Location Name
e.g. ExternalRough(R)-A80-R0.8

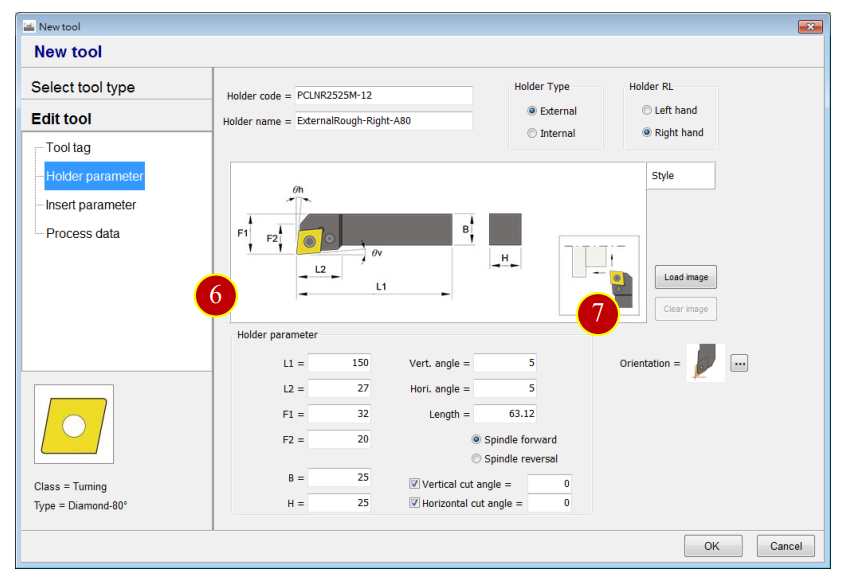

(6) Press【Holder Parameter】, to set tool parameter
e.g. L1=150, L2=27, F1=32, F2=20,B=25, H=25, Vertical Angle=5
Horizontal Angle=5, Length= 63.12, Vertical cut angle=0,
Horizontal cut angle=0
(7) Set up the Orientation

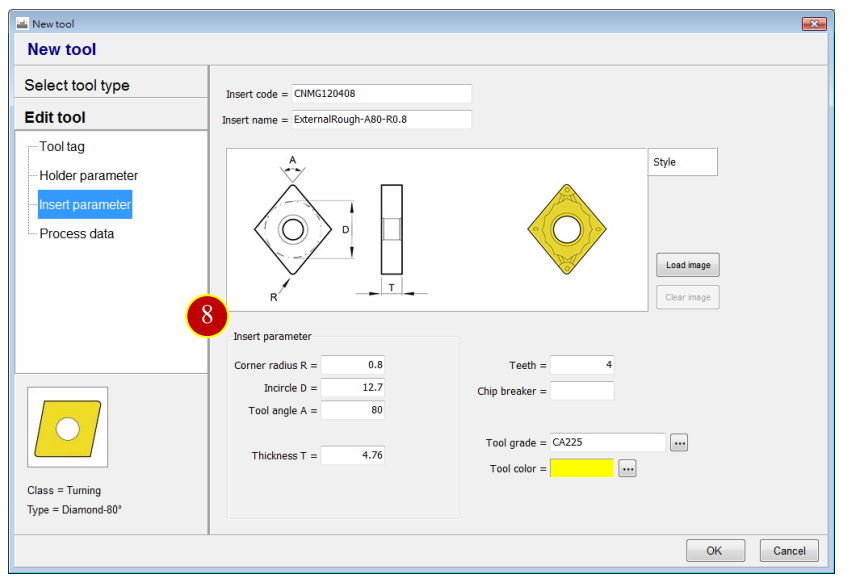

(8) Press【Insert Parameter】Key in the parameter.
e.g. Corner Radius R=0.8, Incircle D =12.7, Tool angle A=80, Thickness T=4.76
(9) Press【Process data】to display the machining data
(10) Press【New】to add new Machining data, Workpiece, RPM, Entry feedrate, Cut depth

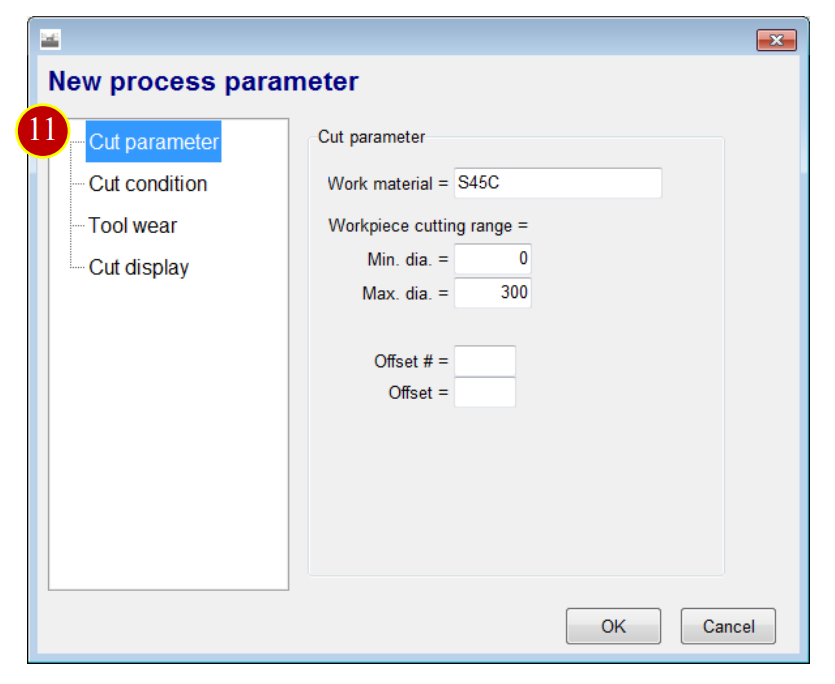

(11) Press【Cut parameter】to edit Work material, Offset, Coolant, Spindle Forward
e.g. Work Material= S45C

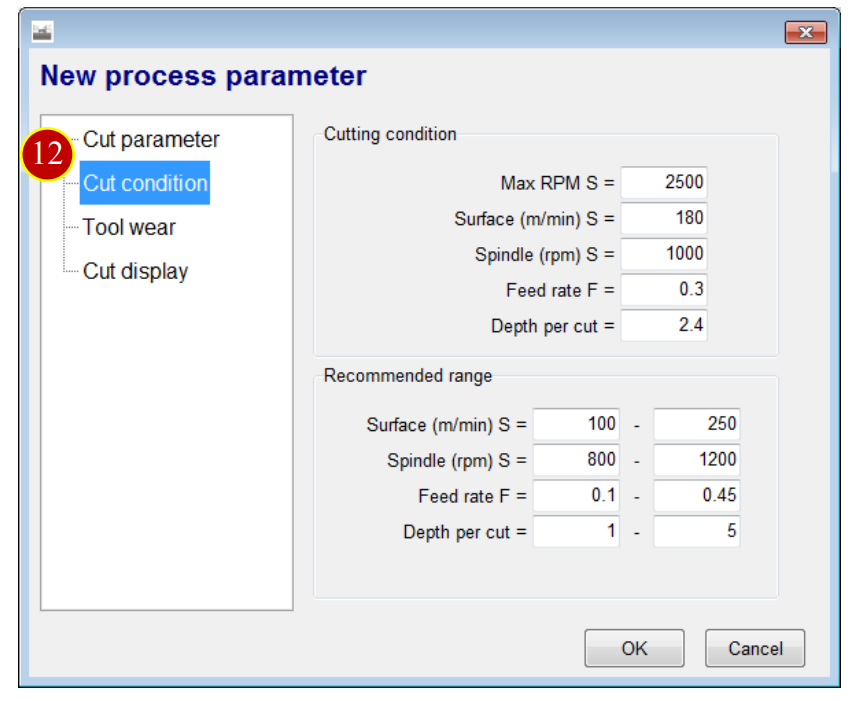

(12) Press【Cut condition】to edit Cut Condition, Spindle RPM, Feedrate Range, Cut Depth
e.g.

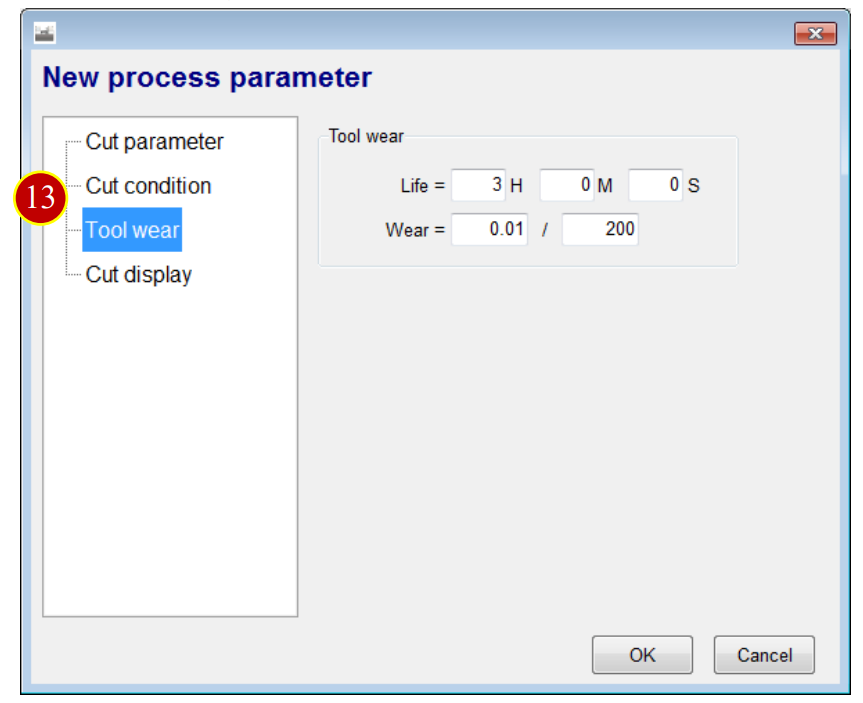

(13) Press【Tool wear】and key in data
e.g. Tool life: 3H 0M 0S, Wear = 0.01 / 200

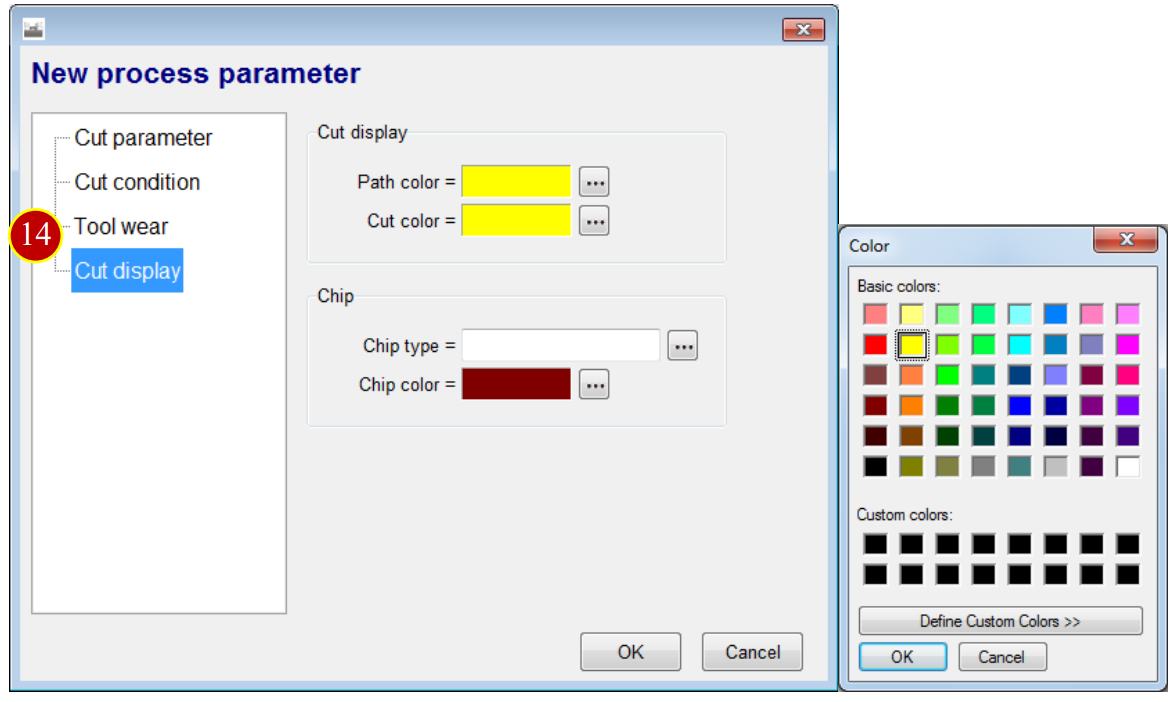

(14) Press【Cut display】and select the color
(15) Press【OK】to finish tool setting
