5. Machine Operation Panel

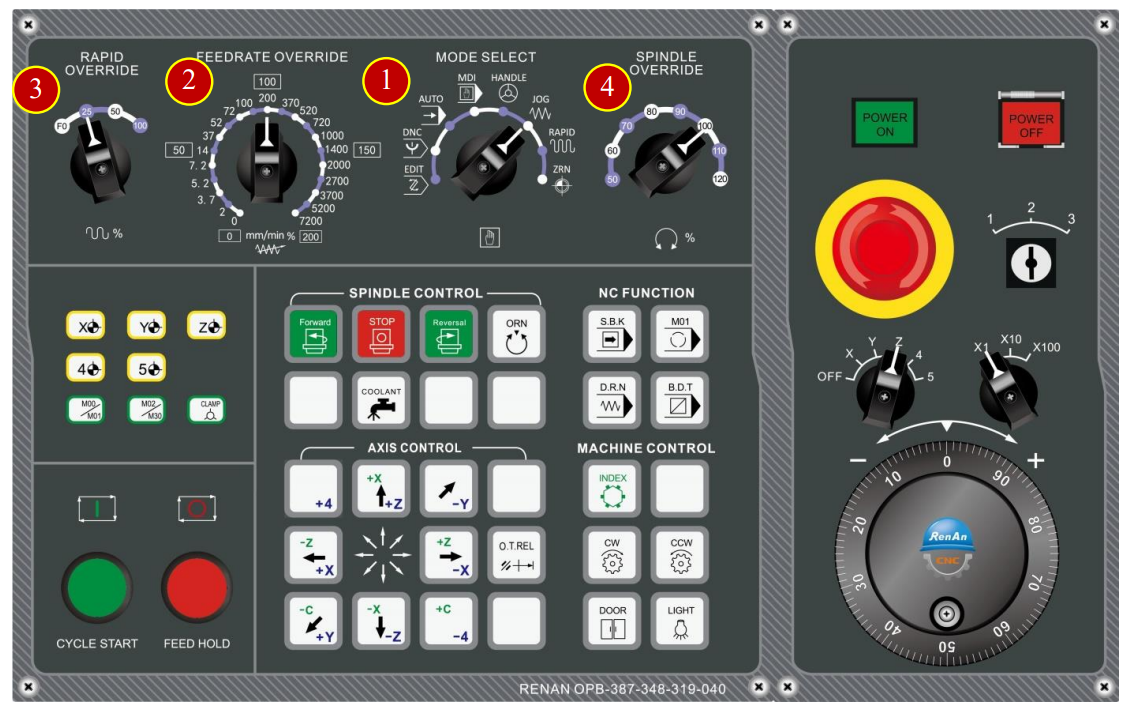

5.1 Main Switch Knob Description

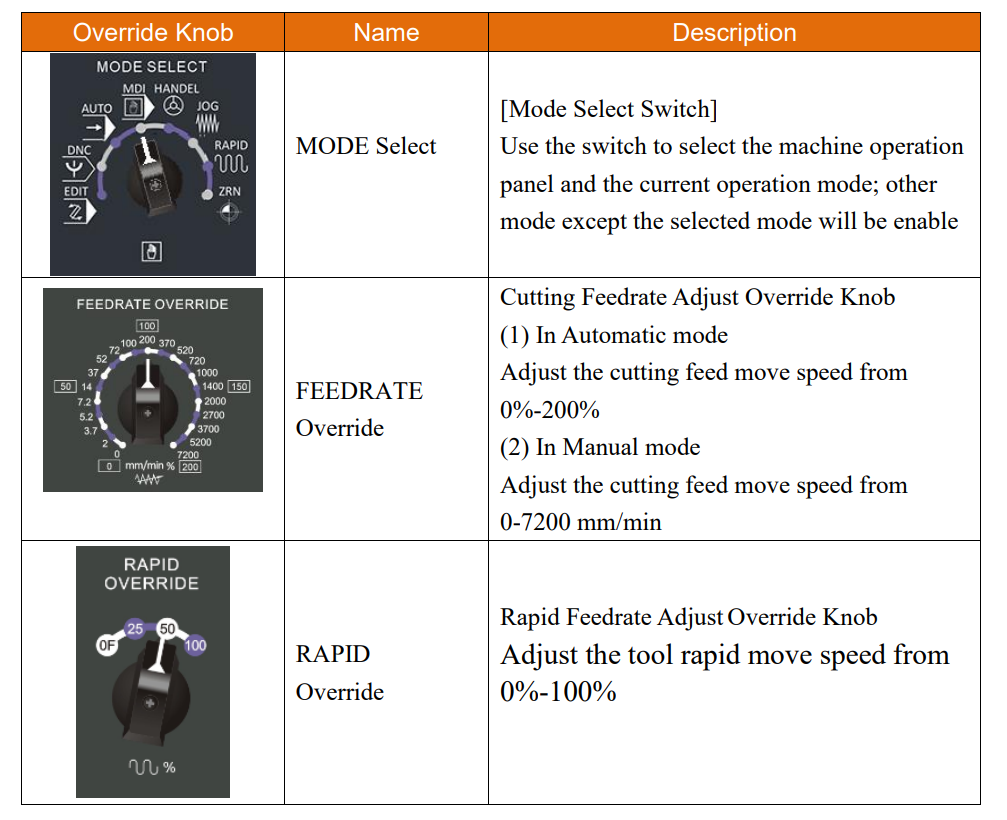

(1) Operation Mode Select Switch
(2) Feedrate Override Knob
(3) Rapid Override Knob
(4) Spindle Override Knob
5.2 Operation Mode Select Switch
[Operation Mode Select Switch] area includes two separate Block:
(1) Automatic modes Block
(2) Manual modes Block

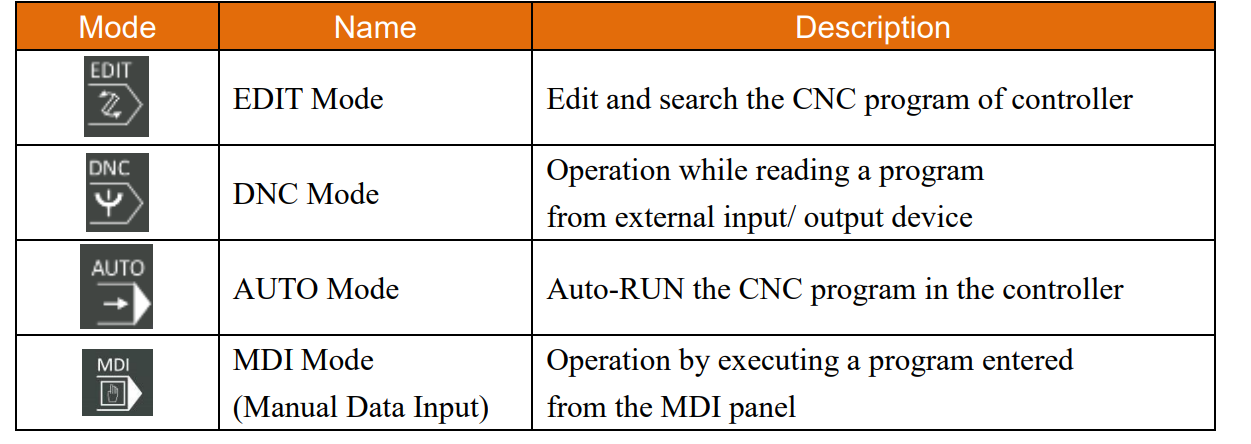

(1) Automatic Mode Area Description

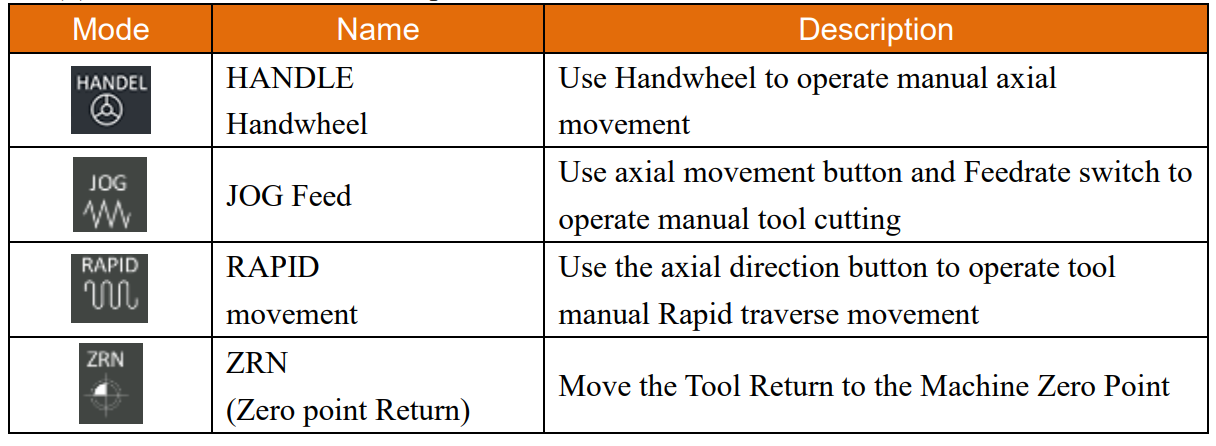

(2) Manual Mode Area Description

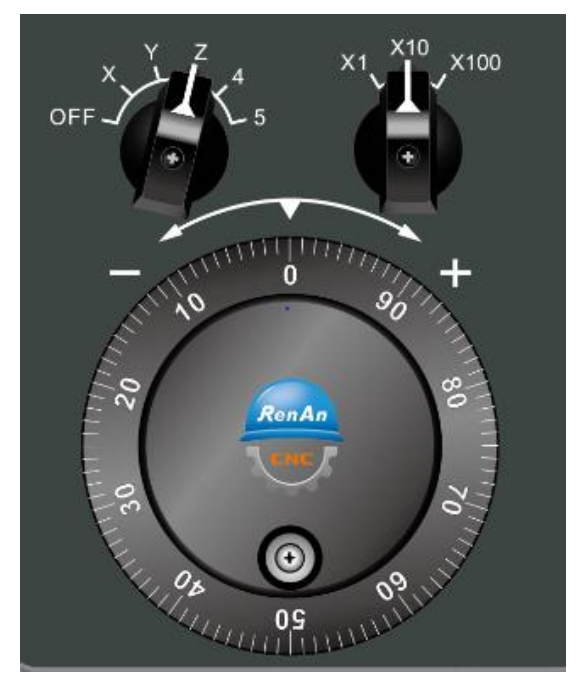

5.3 HANDLE Operation (Handwheel Feed)
When in MPG mode, manually rotates Handwheel to operate tool movement.
5.3.1 HANDLE Override Description:
(1) Rapid Move : Fast Rotate the Handwheel for rapid Move
(2) Accurate Move: Hold the outer ring of Handwheel and rotate slowly for adjustment

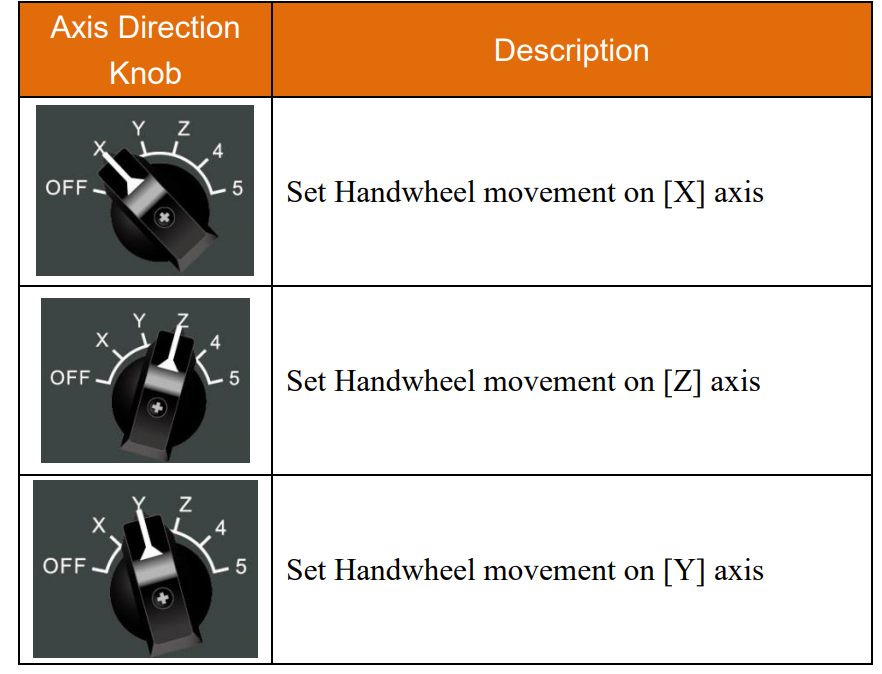

5.3.2 [Axis Direction Select Knob] and [Feedrate Override Knob] Description:
(1) [Axis Direction Knob] Description:
(2) [Feedrate Select Override Knob ] Description:
5.4 Common Buttons Description

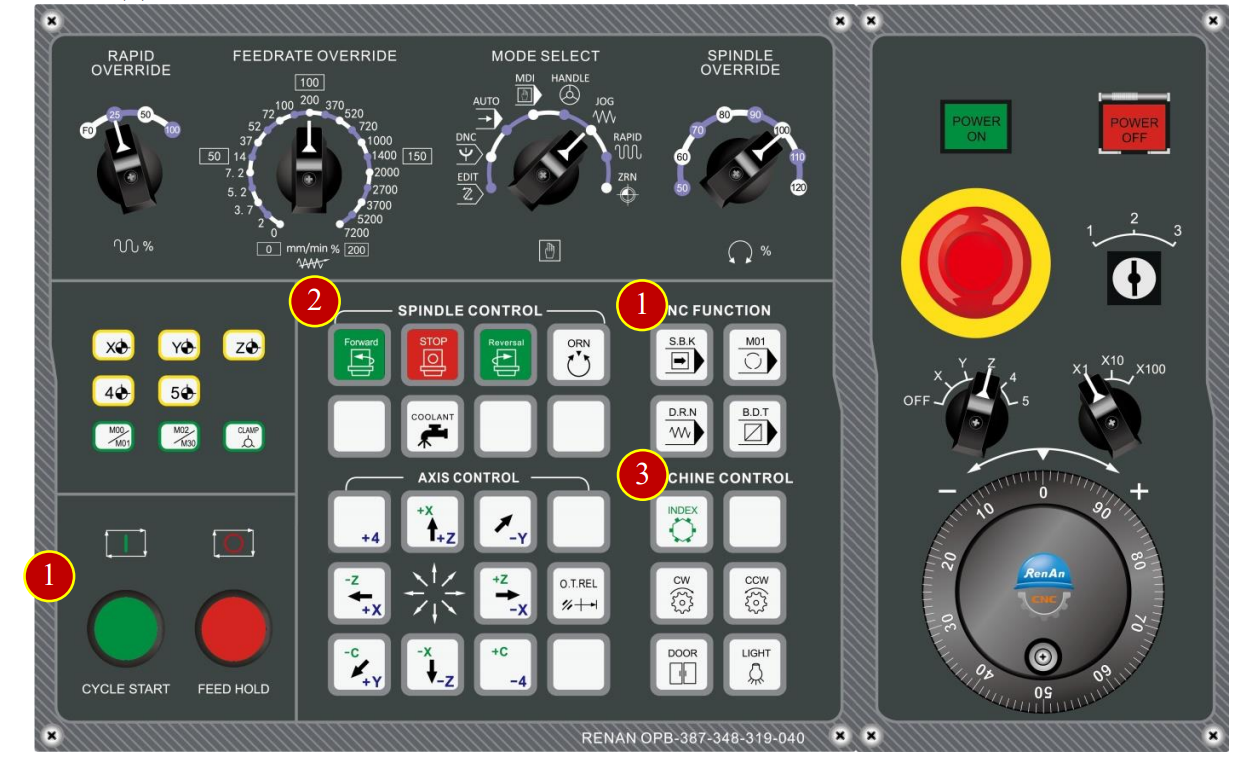

5.4.1 Common Buttons Category
(1) Auto run operation function button
(2) Manual operation function button (Axial movement and Spindle control)
(3) Other assisted function button
5.4.2 Button Description

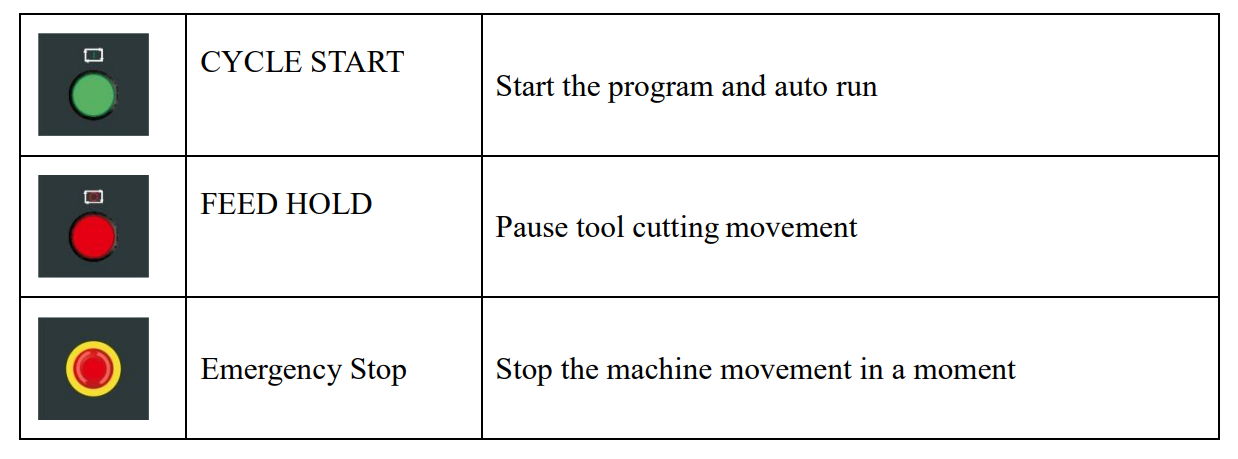

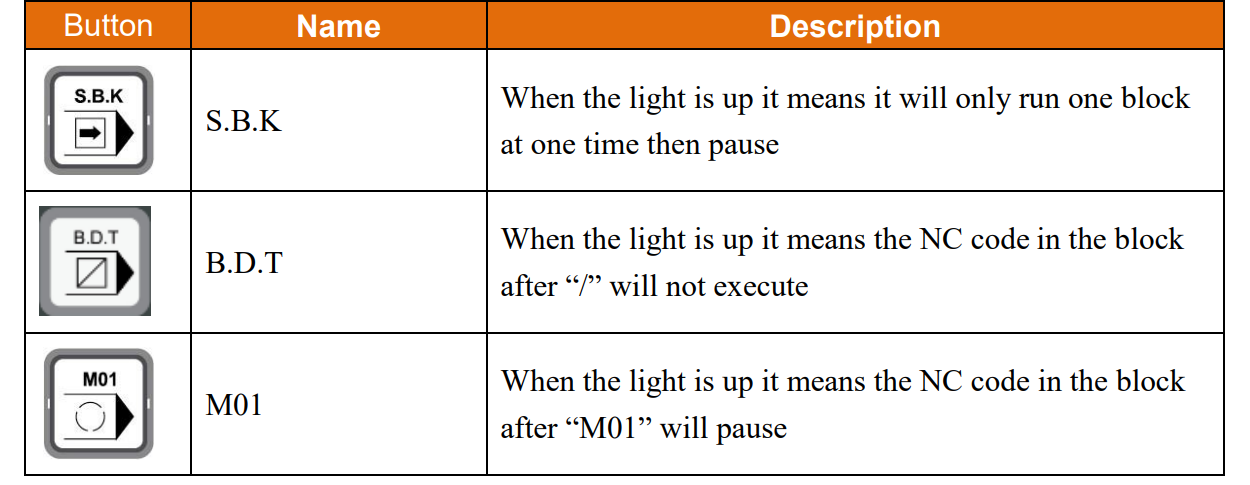

(1) Auto run Operation Function Button Description:

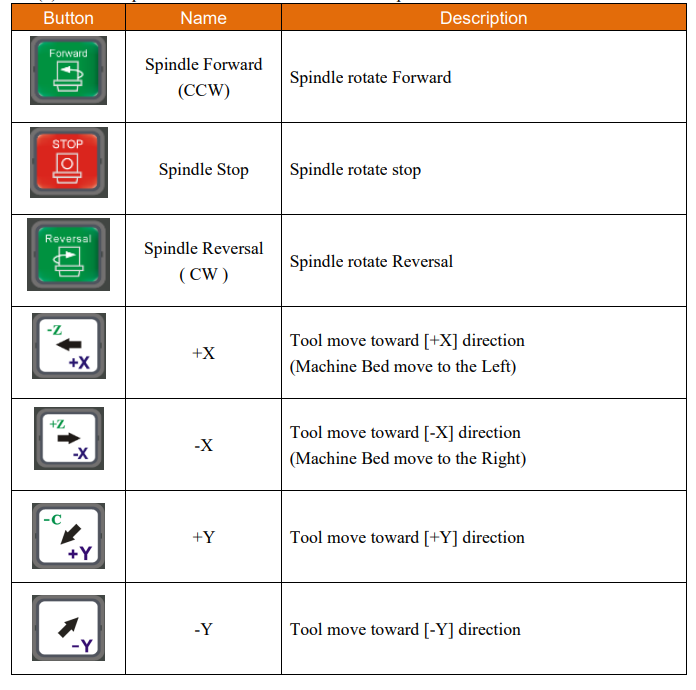

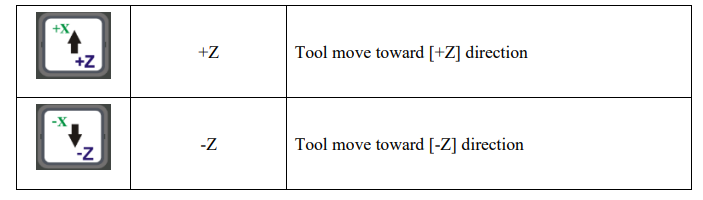

(2) Manual Operation Function Button Area Description:

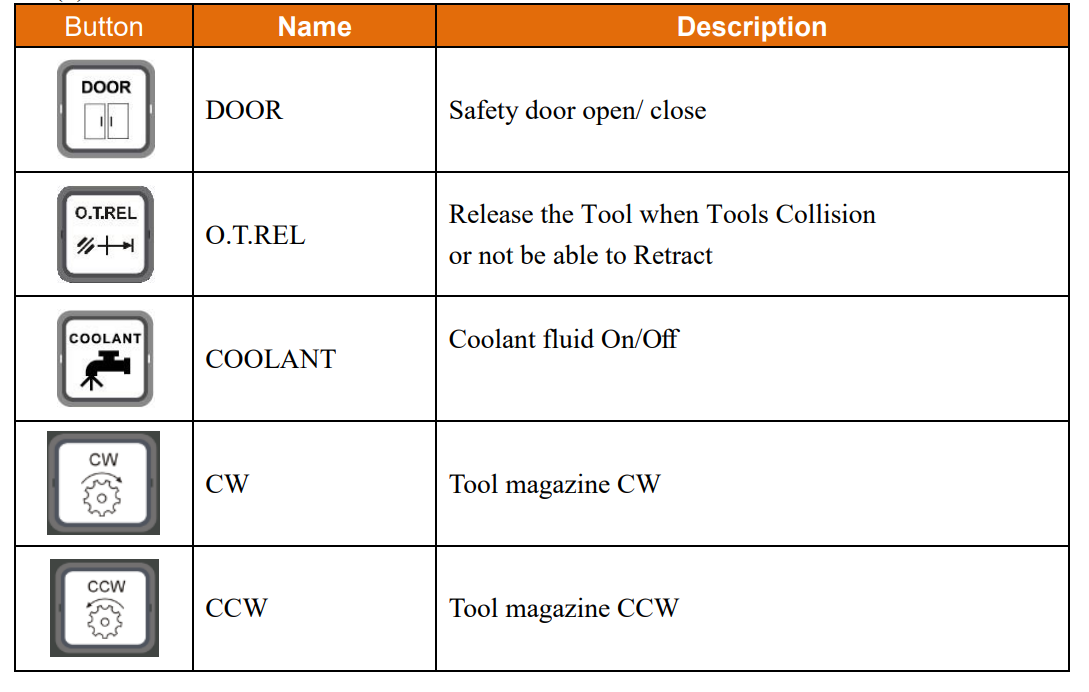

(3) Other Assisted Function Button:
