1. Software Installation Introduction
1.1 Terms Definitions
System : DT-Sinumerik-828D Lathe
CNC Machine : Computer Numerical Control Machine
PC : Personal Computer
1.2 Symbols Explanations
Button :【 】 e.g. Click 【New】 button
List :【 】 e.g. Click 【Setting】in the toolbar
Key : [ ] e.g. Click [Enter] to change column
Column :_ e.g. Click the field Account in the user login window Term : 「 」 e.g. 「CNC」、「PC」
Steps: e.g. (1) Execute the Setup Installation
preview
1.3 System Requirement
CPU : Dual Core 2.8G/Above
RAM : 2GB/Above
HD : 2GB/Above Available
Graphics Card : 1GB/above and compatible with OpenGL
Monitor : 1920 x 1080/Above
Input : Keyboard, Mouse, DVD
OS : Win 7, Win 10
1.4 Software Installation
Before installation, please make sure the computer match the require system

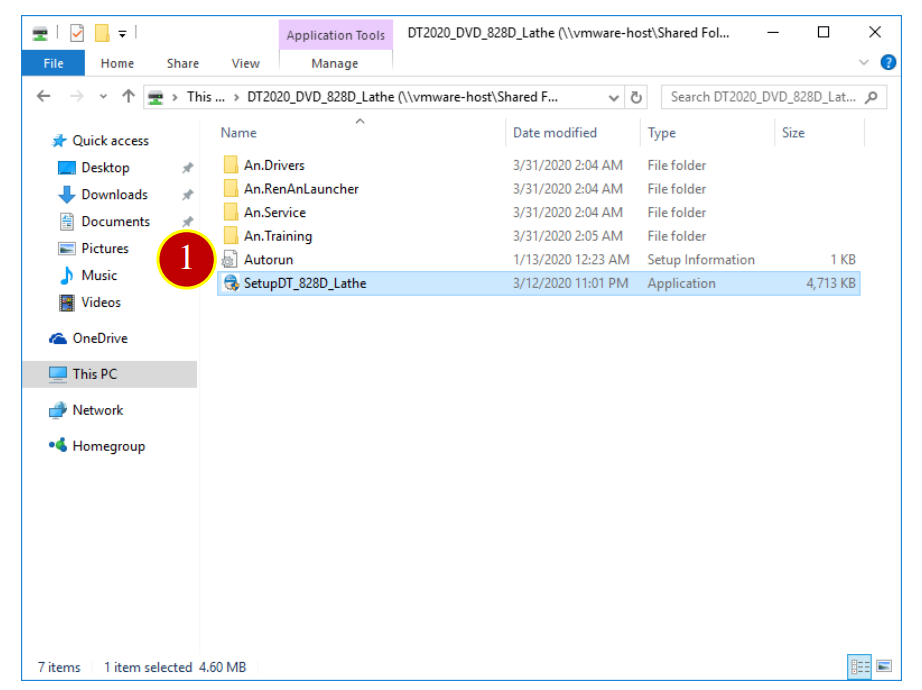

(1) Put RenAn software disc into DVD-ROM, the installation mode will automatically run.
Please double click the exe file if it does not start the installation.
e.g. 「E:\SetupDT_828D_Lathe」 (E:\is stand for the DVD-ROM)

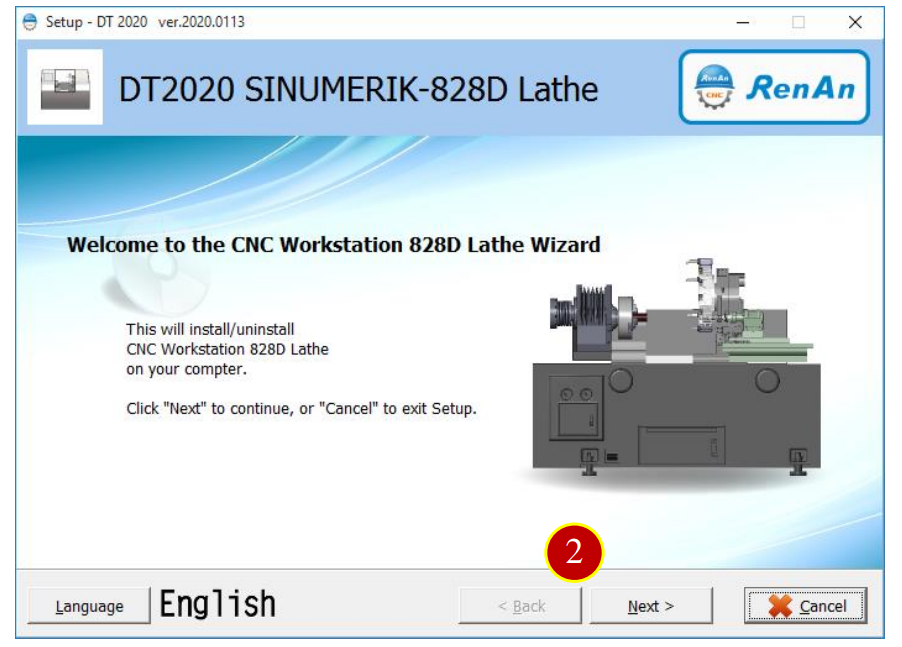

(2) Click【Next】button on the welcome window.
(3) Click【Install】

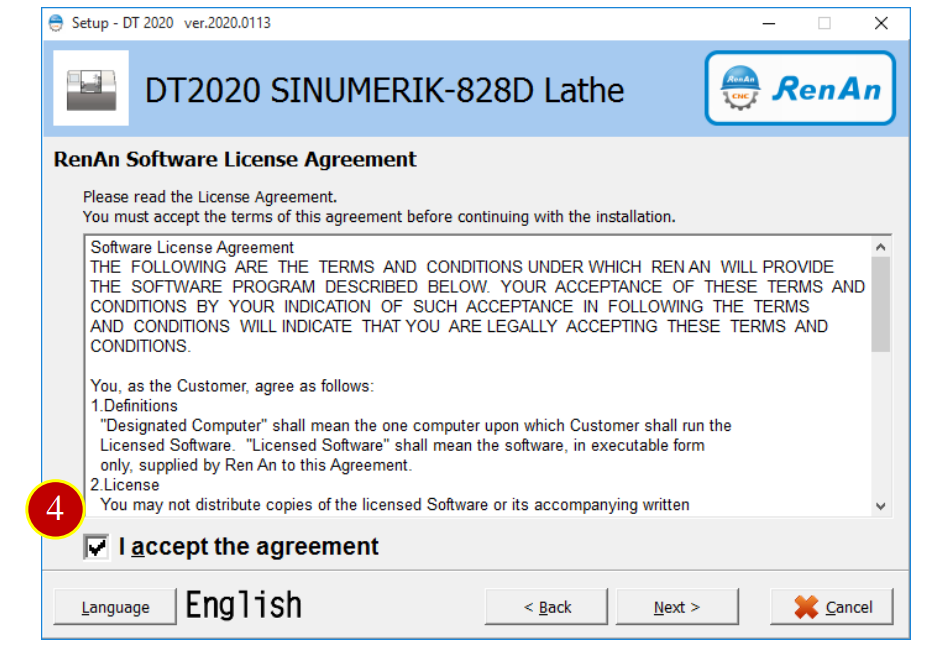

(4) Read the terms and conditions, click【I agree the agreement】 checkbox,
then click【Next】

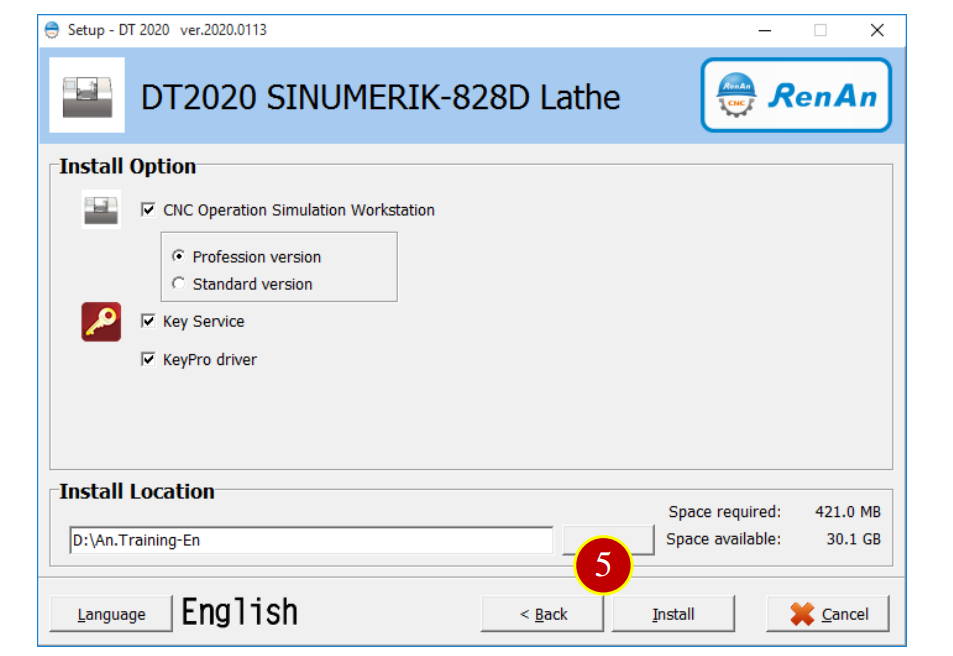

(5) In the installation condition window, please select:
☑ CNC operation Simulation Workstation
☑Professional Version
Standard Version
☑Key Service. Select to install the Key Service
☑KeyPro driver, select to install the drive
Default location will be D:\An.Training-En, or click【…】to set the location
And click【Install】to start the installation.

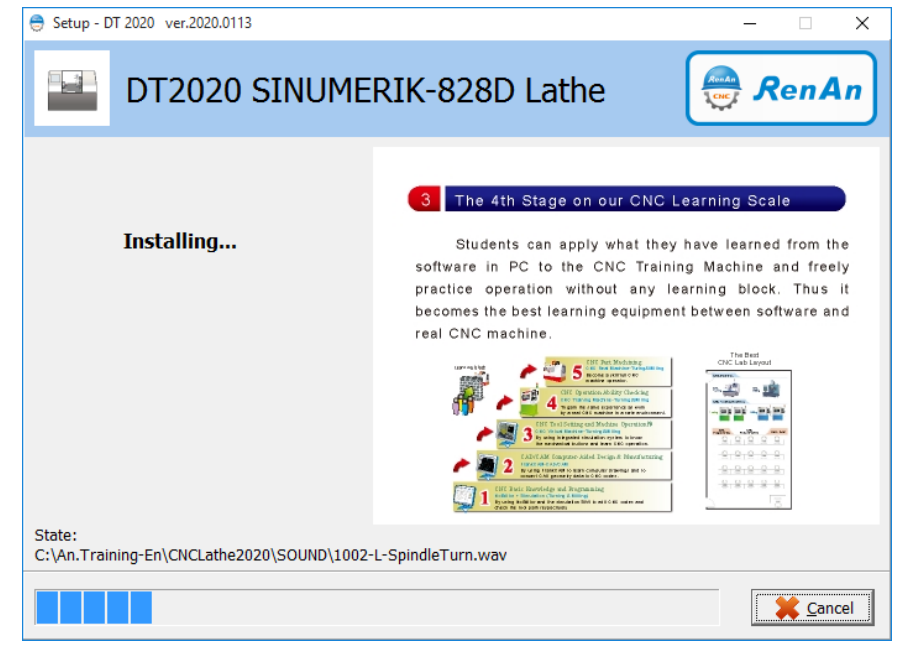

(6) Installing, Please wait a few minute

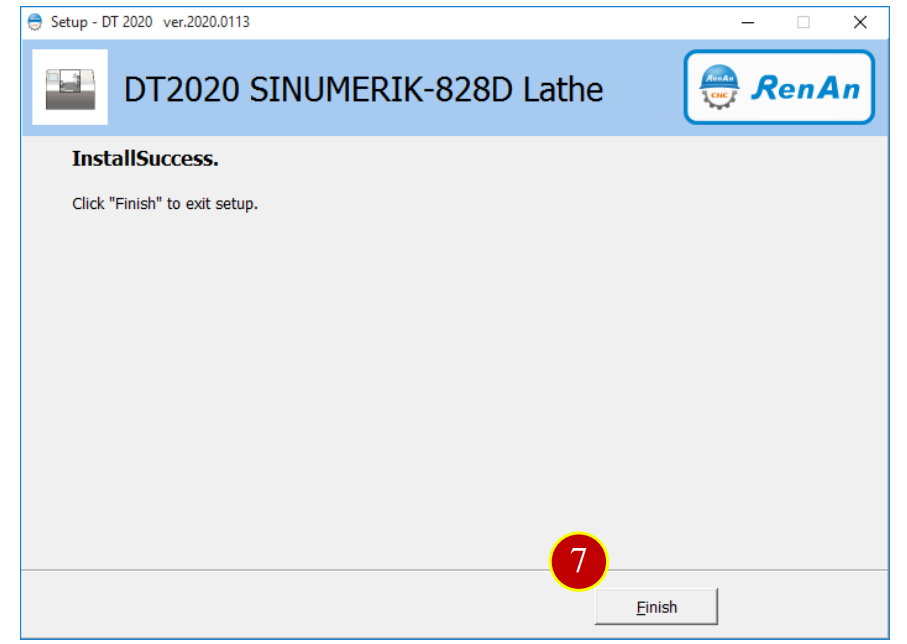

(7)Installation successful, click【Finish】button and restart the computer to execute
the software functionally.

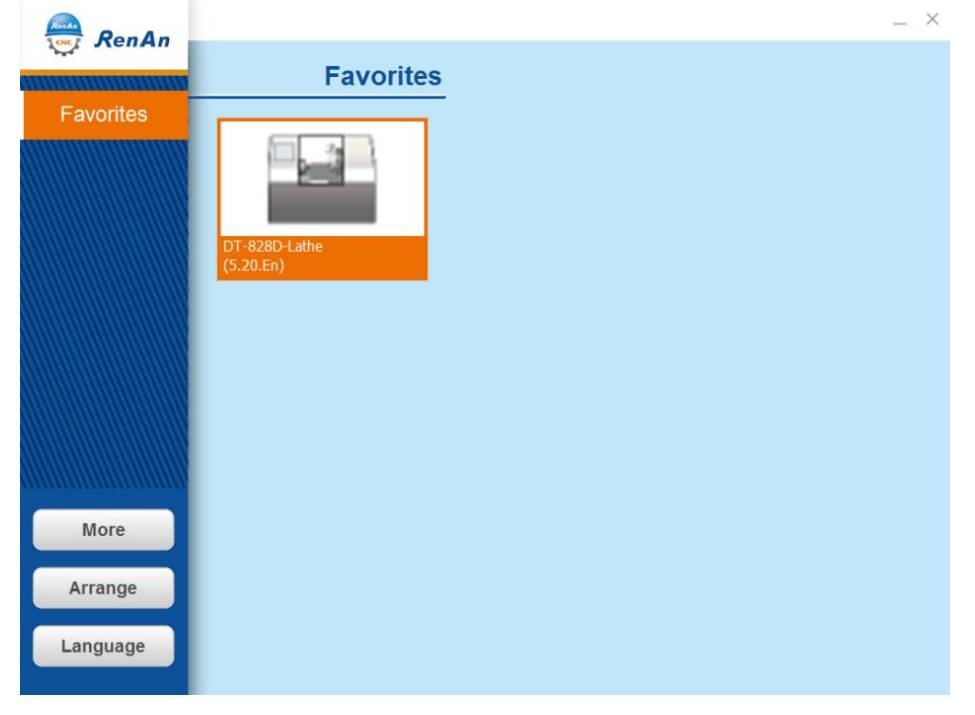

(8)After Installation, there will be a shortcut as 「RenAnSoft Launcher」 on the desktop
1.5 Software Uninstallation
Uninstall and remove DT-828D-Lathe system

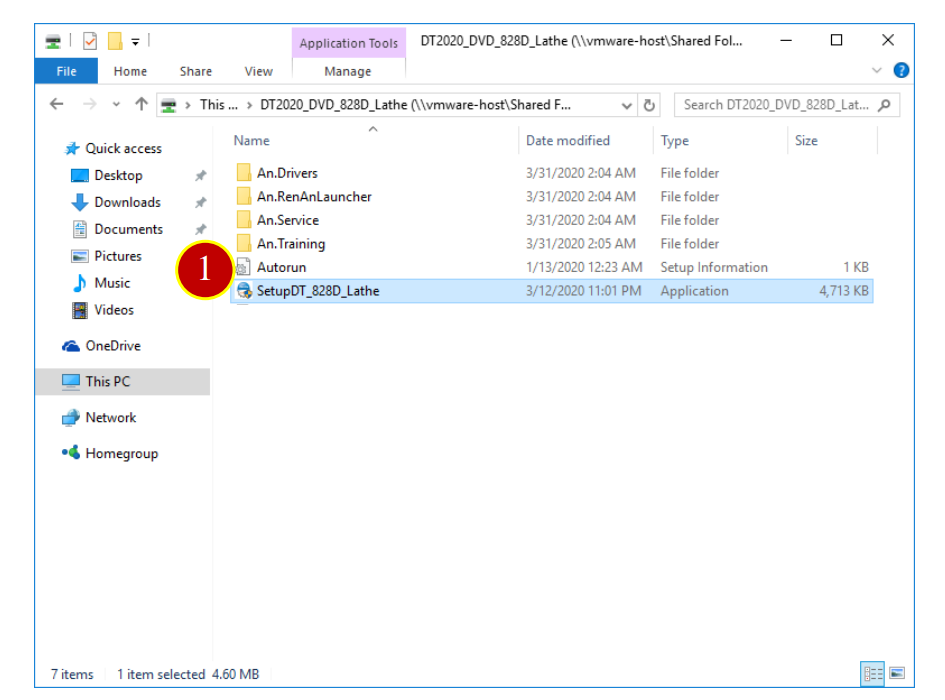

(1) Put RenAn software disc into DVD-ROM, it will automatically run the [Installation/uninstallation] mode, please execute the file.
Please double click the exe file if it does not start running the mode.
e.g. 「E:\SetupDT_828D_Lathe」(E:\is stand for the DVD-ROM)

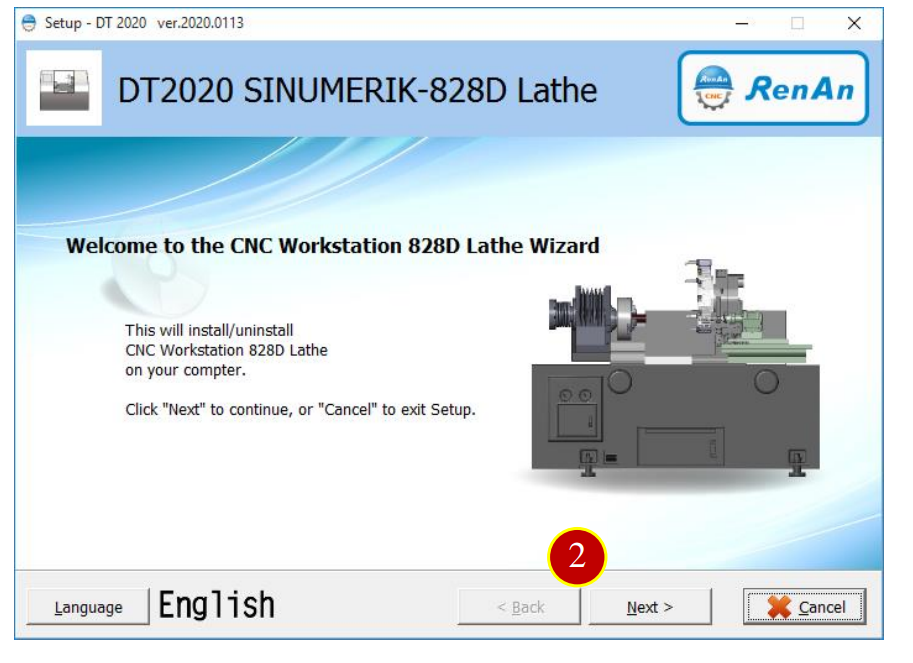

(2) Click【Next】button on the welcome window.

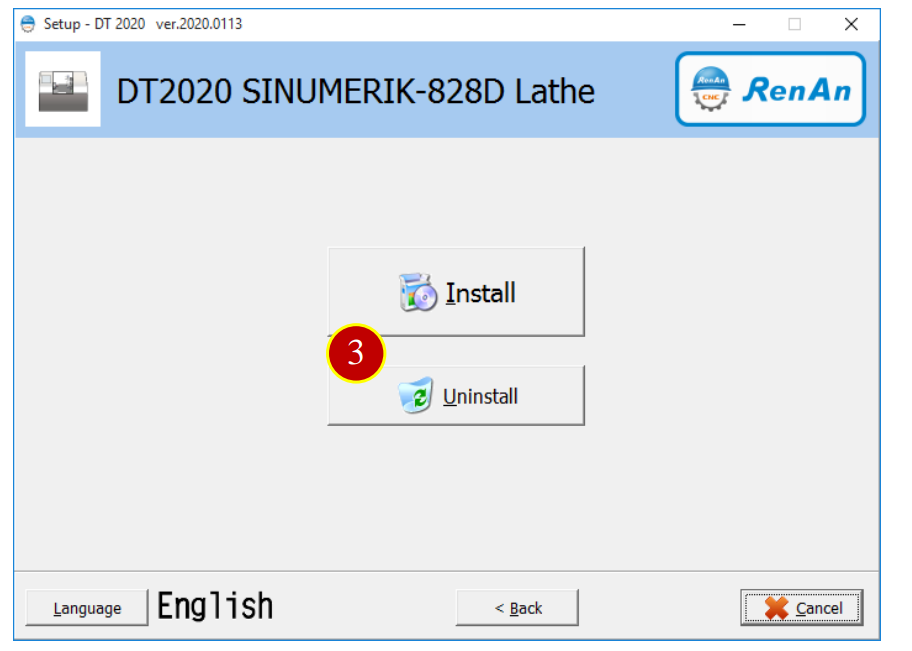

(3) Select【Uninstall】

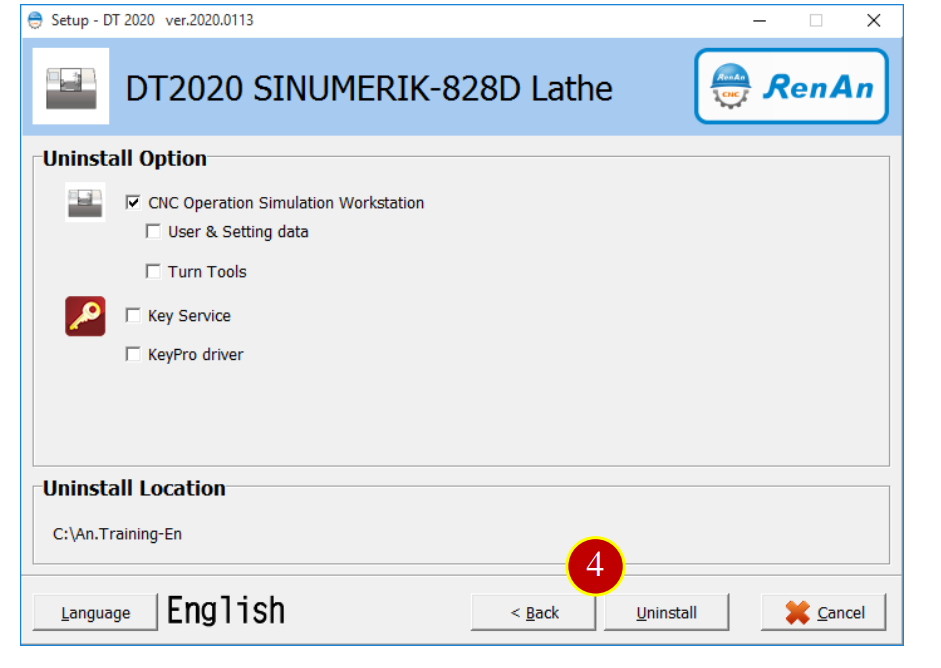

(4) Select the uninstallation options
☑CNC Operation Simulation Workstation
User & Setting data, select to clean the data.
Turning Tools, select to clean the tools.
Key Service, select to clean the Key Service.
KeyPro driver, select to clean the KeyPro Driver
Click【Uninstall】to uninstall the file

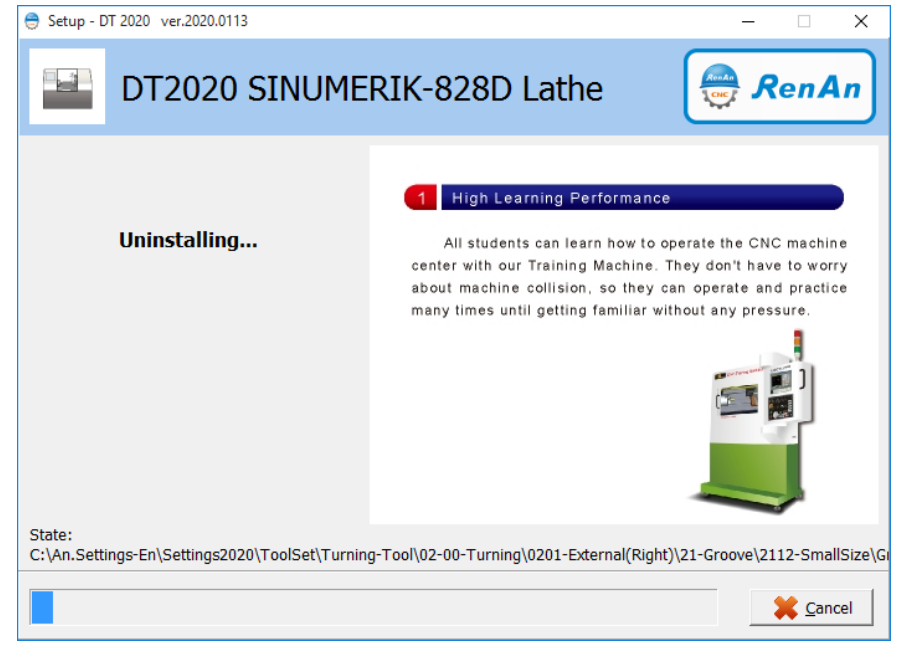

(5) Uninstalling, please wait for a while.

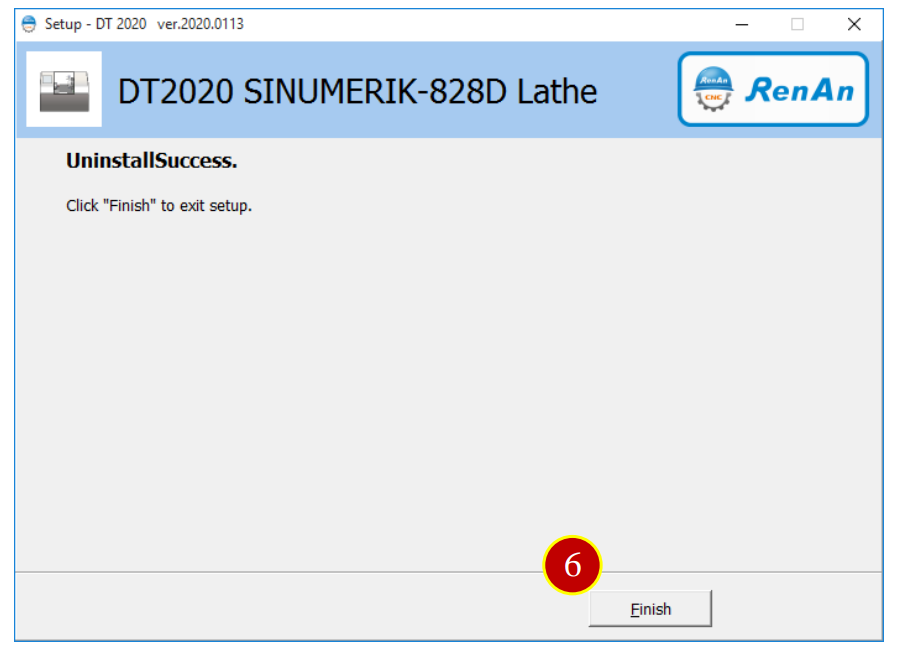

(6) Uninstallation successful, click【Finish】to finish the operation
