2. Basic Introduction
2.1 Enter the DT TNC640-5A(TATC)
2.1.1 Start the Software
(1) Double press the shortcut [RenAnSoft Launcher] on the desktop

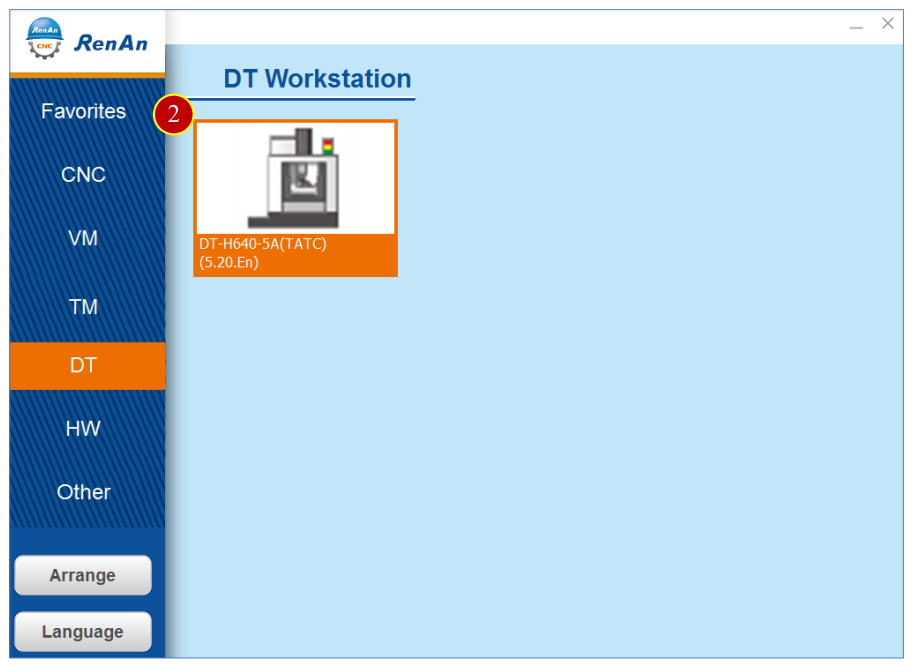

(2) Press [DT-H640-5A(TATC) (5.20.En)] to enter the system。
2.2 Introduction

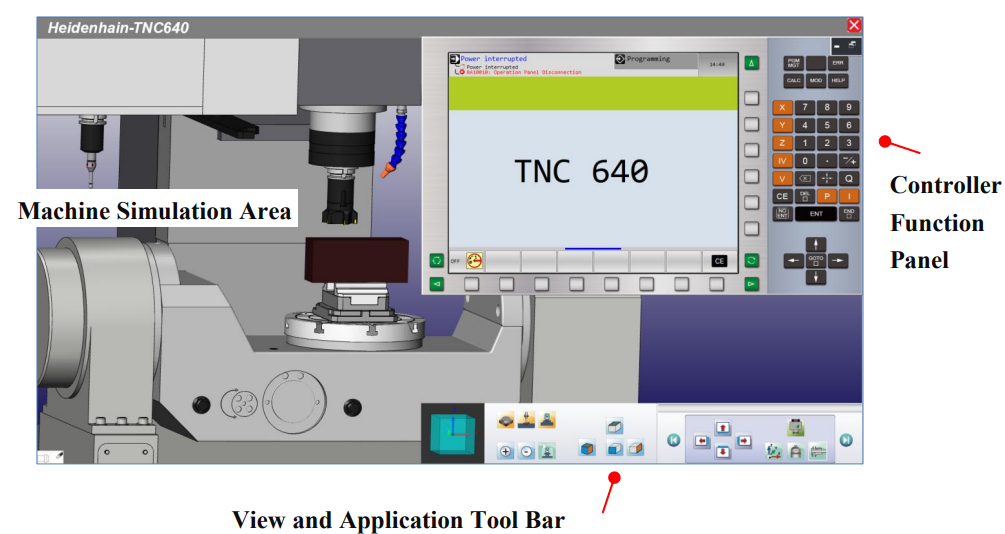

2.2.1 TNC640 5-Axis (TATC) includes：
Application Tool Bar, View Tool Bar, Machine Simulation Area, Controller Function
Panel.

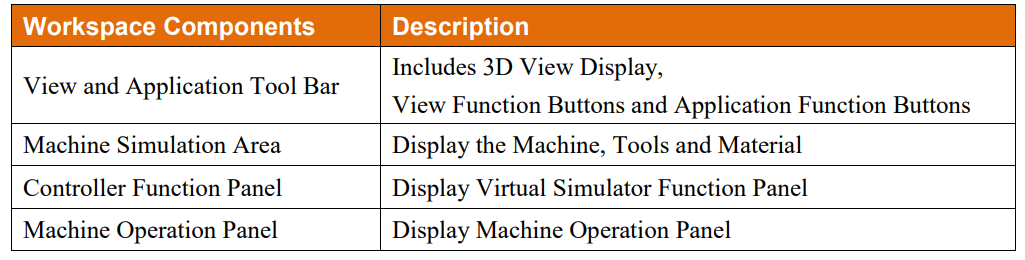

2.2.2 Workspace Descriptions
2.3 View and Application Tool Bar

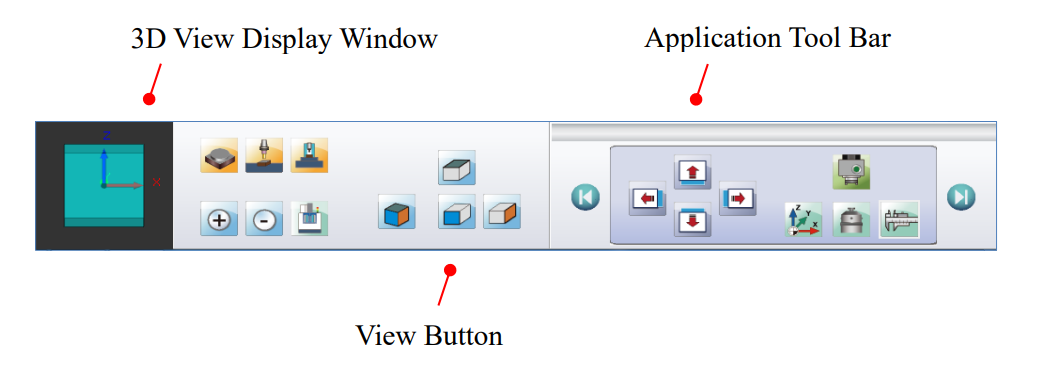

2.3.1 View and Application Tool Bar includes:
(1) 3D View Display Window:
To display the current XYZ angels, touch and drag to switch the angle
(2) View Button: Switch to different common angle
(3) Application Tool Bar:
Sliding touch interface. Switch to different category function button
：Switch to previous categories of function
：Switch to next categories of function

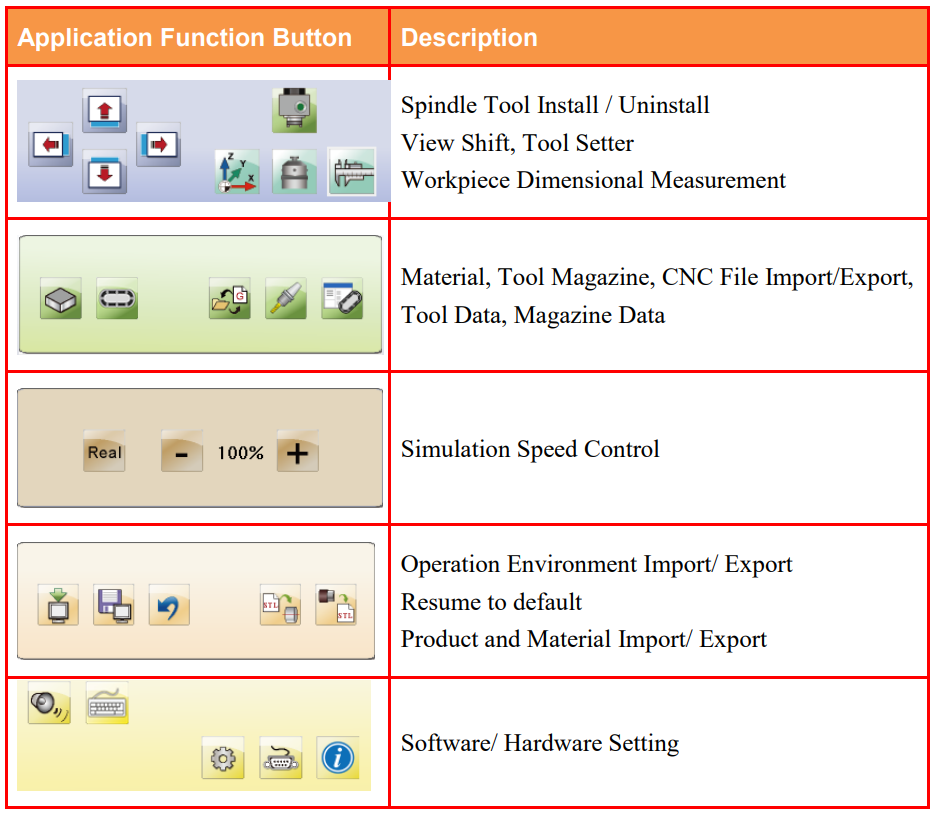

2.3.2 Application Function Button Description

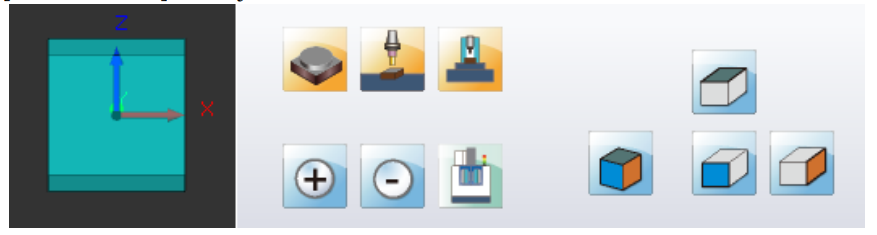

2.4 View Tool Bar
[View Tool Bar] can adjust different views and zoom in/ out.

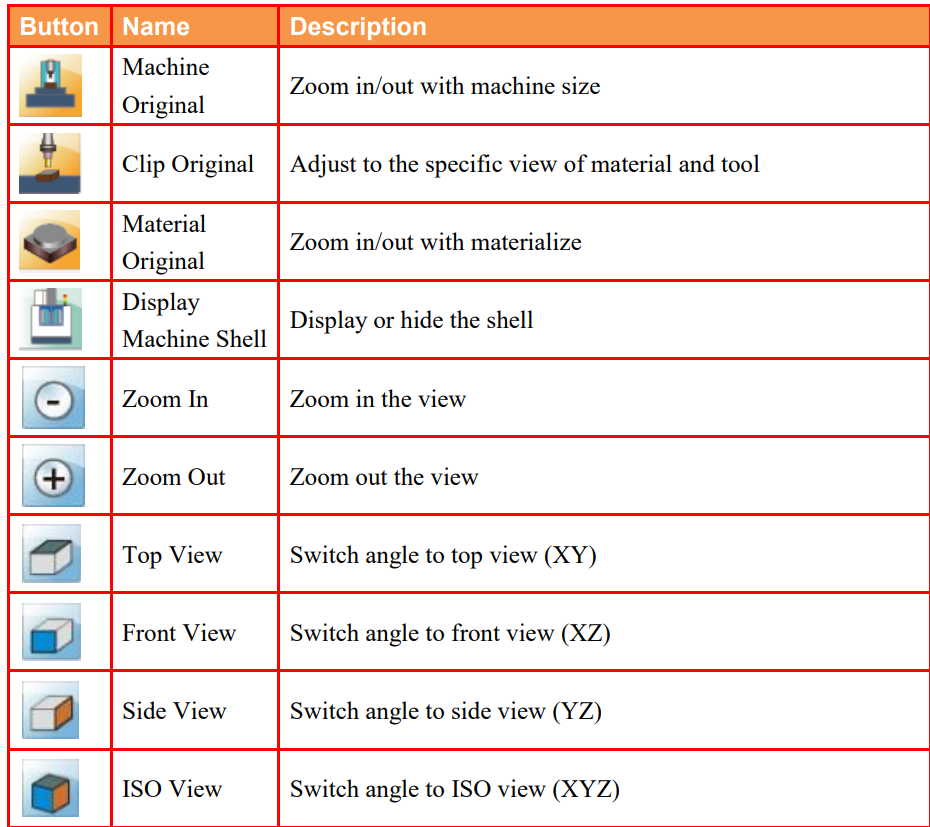

2.4.1 Buttons Description
2.5 CNC File Import/ Export Management
Export the CNC files from virtual machine to disk or USB
or import the file of disk or USB to virtual machine
2.5.1 Open CNC File Import/ Export Function

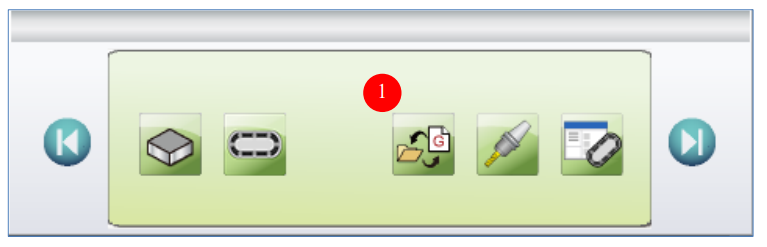

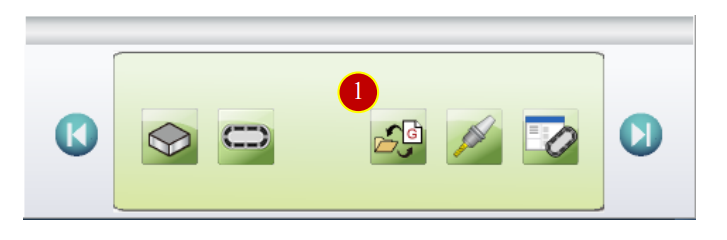

(1) Press [CNC File Import/ Export] option of [Application Tool Bar]

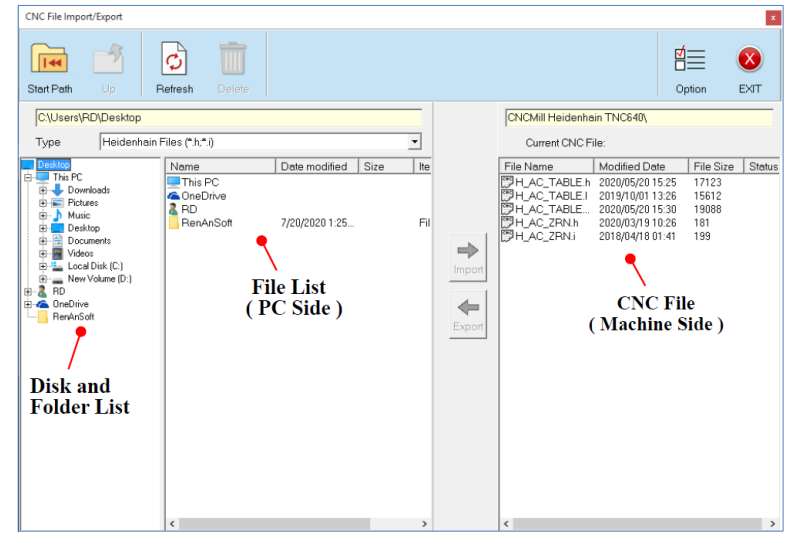

(2) After entering the [CNC File Import/ Export] window,
the buttons description is down below:

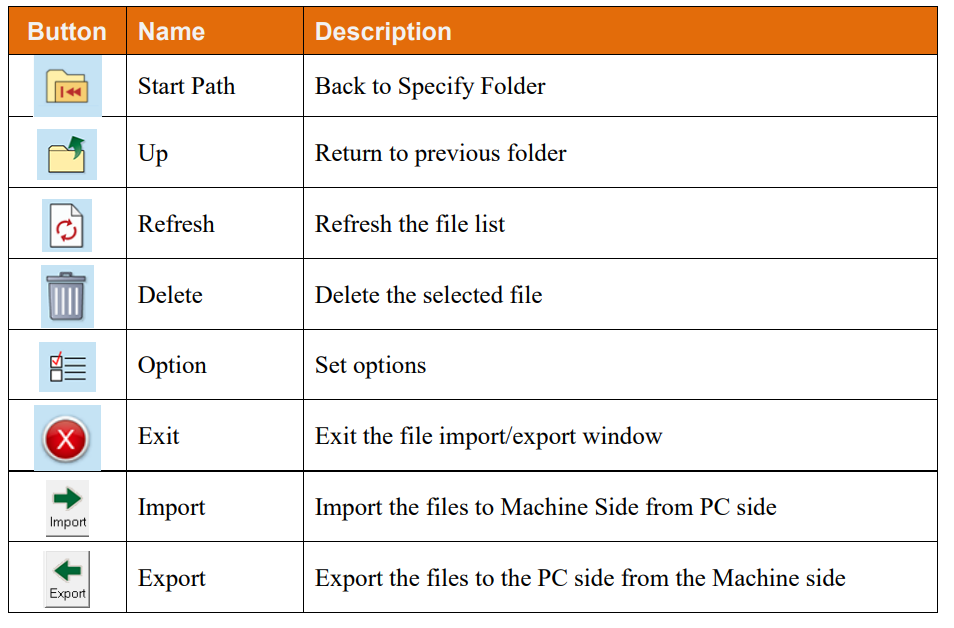

2.5.2 [CNC File Import/ Export] Button Description:

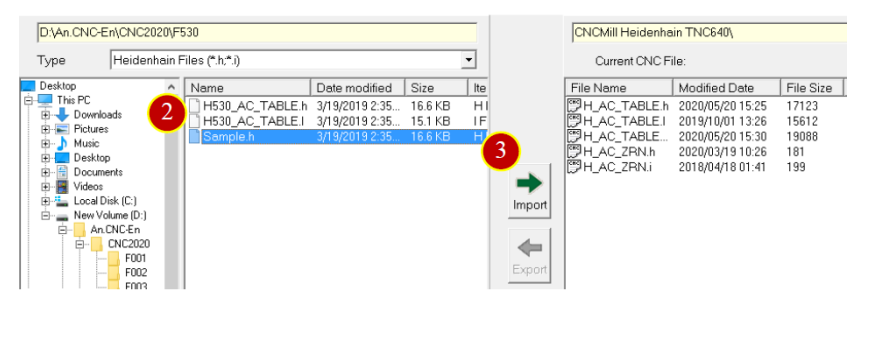

2.5.3 Import CNC File

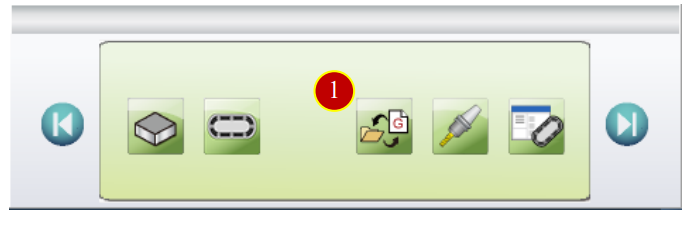

(1) Press [CNC File Import/ Export]
(2) Select CNC file from the menu of left side, e.g.: Sample.h
(3) Press [Import] to import CNC file to machine side
2.5.4 Export CNC File
(1) Press [CNC File Import/Export]
(2) Select CNC file to export from the menu of right side, e.g.: H_AC_TABLE.h
(3) Press [Export] to export the CNC file
